ST16C1450 - (ST16C1450 / ST16C1451) 2.97V TO 5.5V UART

Description

The ST16C1450, ST16C1451 series (here on denoted as the 145X) is a universal asynchronous receiver and transmitter (UART).

The 145X is foot print compatible to the SSI 73M1550 and SSI 73M2550 UART with one byte FIFO and higher operating speed and lower access time.

Features

  • may be tailored by external software to meet specific user requirements. An internal loopback capability allows onboard diagnostics. The 145X is available in a 28-pin PLCC/plastic-DIP , 48-pin TQFP packages. The Baud rate generator can be configured for either crystal or external clock input with the exception of the 28 pin 1451 package. An external clock must be provided for the 28 pin 1451 package. Each package type, with the exception of the 28 pin 1450, provides a buffered reset output that.

📥 Download Datasheet

📁 Similar Datasheet

  • ST16C2450 - DUAL UNIVERSAL ASYNCHRONOUSRECEIVER/TRANSMITTER (STARTECH)
  • ST16C32245 - 14 BIT DUAL SUPPLY BUS TRANSCEIVER LEVEL TRANSLATOR (STMicroelectronics)
  • ST16C450 - UNIVERSAL ASYNCHRONOUS RECEIVER/TRANSMITTER (STARTECH)
  • ST16C452PS - DUAL UART (Exar)
  • ST16C554 - 2.97V to 5.5V Quad UART (MaxLinear)
  • ST16C554D - 2.97V to 5.5V Quad UART (MaxLinear)
  • ST16C654D - 2.97V TO 5.5V QUAD UART WITH 64-BYTE FIFO (Exar)
  • ST16CF54 - Smartcard MCU With 4 KBytes EEPROM 512 Bits Modular Arithmetic Processor (ST Microelectronics)
  • ST16010 - 28V RF Power LDMOS transistor (STMicroelectronics)
  • ST16045 - 28V RF Power LDMOS transistor (STMicroelectronics)
Other Datasheets by Exar Corporation
  • ST16C1451 - (ST16C1450 / ST16C1451) 2.97V TO 5.5V UART
  • ST16C1550 - (ST16C1550 / ST16C1551) 2.97V TO 5.5V UART WITH 16-BYTE FIFO
  • ST16C1551 - (ST16C1550 / ST16C1551) 2.97V TO 5.5V UART WITH 16-BYTE FIFO
  • ST16C2450 - (ST16C2450 / ST16C2451) 2.97V TO 5.5V DUART
  • ST16C2451 - (ST16C2450 / ST16C2451) 2.97V TO 5.5V DUART
  • ST16C2550 - 2.97V TO 5.5V DUART
  • ST16C2552 - 2.97V TO 5.5V DUAL UART WITH 16-BYTE FIFO
  • ST16C450 - UNIVERSAL ASYNCHRONOUS RECEIVER/TRANSMITTER (UART)

Full PDF Text Transcription

Click to expand full text

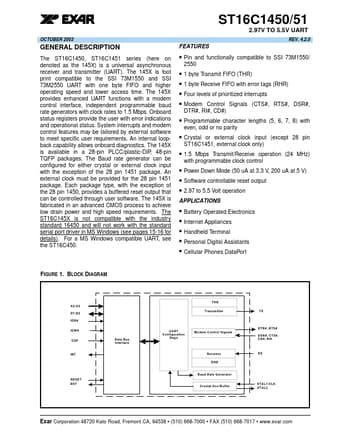

รกรง OCTOBER 2003 ST16C1450/51 2.97V TO 5.5V UART REV. 4.2.0 GENERAL DESCRIPTION The ST16C1450, ST16C1451 series (here on denoted as the 145X) is a universal asynchronous receiver and transmitter (UART). The 145X is foot print compatible to the SSI 73M1550 and SSI 73M2550 UART with one byte FIFO and higher operating speed and lower access time. The 145X provides enhanced UART functions with a modem control interface, independent programmable baud rate generators with clock rates to 1.5 Mbps. Onboard status registers provide the user with error indications and operational status. System interrupts and modem control features may be tailored by external software to meet specific user requirements. An internal loopback capability allows onboard diagnostics.
