EL817Y-FVG - 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER

Download the EL817Y-FVG datasheet PDF. This datasheet also covers the EL817-FVG variant, as both devices belong to the same 4 pin dip phototransistor photocoupler family and are provided as variant models within a single manufacturer datasheet.

Description

The EL817-G series of devices each consist of an infrared emitting diodes, optically coupled to a phototransistor detector.

They are packaged in a 4-pin DIP package and available in wide-lead spacing and SMD option.

Programmable controllers System appliances, measur

Features

  • .
  • Compliance Halogens Free (Br < 900 ppm, Cl < 900 ppm, Br+Cl < 1500 ppm).
  • Current transfer ratio (CTR: 50~600% at IF = 5mA, VCE = 5V).
  • High isolation voltage between input and output (Viso = 5000Vrms ).
  • Creepage distance > 7.62mm.
  • Operating temperature up to +110°C.
  • Compact small outline package.
  • Compliance with EU REACH.
  • The product itself will remain within RoHS compliant version.
  • UL and cUL approved(No. E214129).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (EL817-FVG-Everlight.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number EL817Y-FVG
Manufacturer Everlight
File Size 938.75 KB
Description 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER
Datasheet download datasheet EL817Y-FVG Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
EL817 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER Everlight Electronics
EL817 Photocoupler ARTS CHIP
EL8170 Rail-to-Rail Input-Output Instrumentation Amplifier Renesas
EL8171 Rail-to-Rail Input-Output Instrumentation Amplifier Renesas
EL8172 Rail-to-Rail Input-Output Instrumentation Amplifier Renesas

Other Datasheets by Everlight

Part Number Description
EL817Y-FV 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER
EL817Y 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER
EL817-G 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER
EL817A 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER
EL817A-FV 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

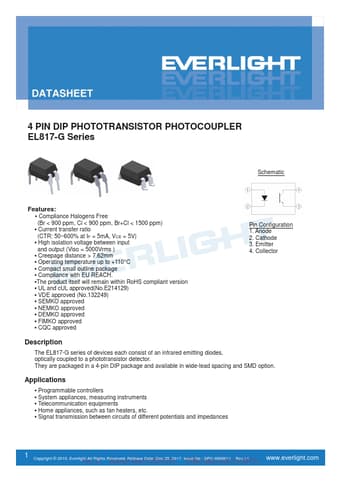

4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER EL817-G Series Schematic Features: .• Compliance Halogens Free (Br < 900 ppm, Cl < 900 ppm, Br+Cl < 1500 ppm) • Current transfer ratio (CTR: 50~600% at IF = 5mA, VCE = 5V) • High isolation voltage between input and output (Viso = 5000Vrms ) • Creepage distance > 7.62mm • Operating temperature up to +110°C • Compact small outline package • Compliance with EU REACH. •The product itself will remain within RoHS compliant version • UL and cUL approved(No.E214129) • VDE approved (No.132249) • SEMKO approved • NEMKO approved • DEMKO approved • FIMKO approved • CQC approved Pin Configuration 1. Anode 2. Cathode 3. Emitter 4.
