EL817D-FV - 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER

Product Overview

Everlight

Datasheet Details

Part number	EL817D-FV
Manufacturer	Everlight
File Size	940.44 KB
Description	4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER
Datasheet	EL817D-FV Datasheet
Note	This datasheet PDF includes multiple part numbers: EL817D-FV, EL817-G. Please refer to the document for exact specifications by model.
Additional preview pages of the EL817D-FV datasheet.

Product details

Description

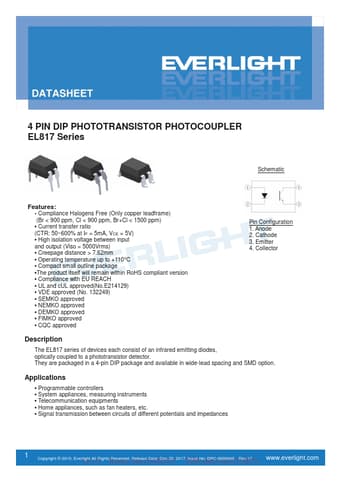

The EL817 series of devices each consist of an infrared emitting diodes, optically coupled to a phototransistor detector. Programmable controllers System appliances, measuring instruments Telecommunication equipments Home appliances, such as fan heaters, etc. Signal transmission between circuits of different potentials and impedances 1 Copyr

Features

Compliance Halogens Free (Only copper leadframe) (Br < 900 ppm, Cl < 900 ppm, Br+Cl < 1500 ppm).
Current transfer ratio (CTR: 50~600% at IF = 5mA, VCE = 5V).
High isolation voltage between input and output (Viso = 5000Vrms).
Creepage distance > 7.62mm.
Operating temperature up to +110°C.
Compact small outline package.
The product itself will remain within RoHS compliant version.
Compliance with EU REACH.
UL and cUL.
