CLS15-22C-L213R-TR8 - Surface - Mount RGB Color Sensor

Name: CLS15-22C-L213R-TR8
SKU: CLS15-22C-L213R-TR8-914016

Everlight

📥 Download Datasheet

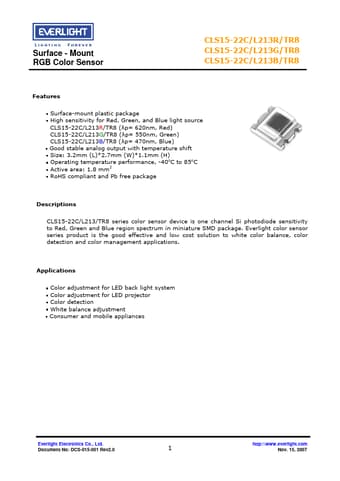

CLS15-22C-L213R-TR8 Datasheet Preview — Preview of CLS15-22C-L213R-TR8 PDF

Datasheet Details

Part number	CLS15-22C-L213R-TR8
Manufacturer	Everlight
File Size	617.47 KB
Description	Surface - Mount RGB Color Sensor
Datasheet	CLS15-22C-L213R-TR8-Everlight.pdf

CLS15-22C-L213R-TR8 Product details

Description

CLS15-22C/L213/TR8 series color sensor device is one channel Si photodiode sensitivity to Red, Green and Blue region spectrum in miniature SMD package.

Features

․Surface-mount plastic package ․High sensitivity for Red, Green, and Blue light source CLS15-22C/L213R/TR8 (λp= 620nm, Red) CLS15-22C/L213G/TR8 (λp= 550nm, Green) CLS15-22C/L213B/TR8 (λp= 470nm, Blue) ․Good stable analog output with temperature shift ․Size: 3.2mm (L).
2.7mm (W).
1.1mm (H) ․Operating temperature performance, -40oC to 85oC ․Active area: 1.8 mm2 ․RoHS compliant and Pb free package.
