ELT-316GWB - Technical Data Sheet 0.36 Triple Digit Displays

Everlight Electronics

The ELT-316GWB by Everlight Electronics is a Technical Data Sheet 0.36 Triple Digit Displays. Below is the official datasheet preview.

📥 Download Datasheet

ELT-316GWB Technical Data Sheet 0.36 Triple Digit Displays by Everlight Electronics - Datasheet Preview — Official preview page of the **ELT-316GWB** Technical Data Sheet 0.36 Triple Digit Displays datasheet (Everlight Electronics).

Datasheet Details

Part number	ELT-316GWB
Manufacturer	Everlight Electronics
File Size	355.39 KB
Description	Technical Data Sheet 0.36 Triple Digit Displays
Datasheet	ELT-316GWB_EverlightElectronics.pdf

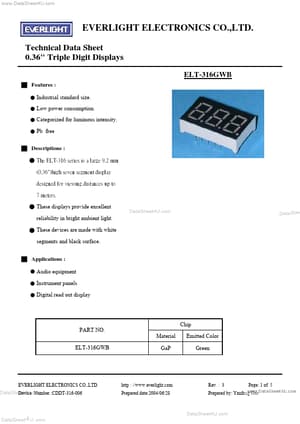

Additional preview pages of the ELT-316GWB datasheet.

ELT-316GWB Product details

Description

: The ELT-316 series is a large 9.2 mm (0.36")high seven segment display designed for viewing distances up to 7 meters. These displays provide excellent reliability in bright ambient light. These devices are made with white segments and black surface. Applications : DataSheet4U.com DataShee Audio equipment Instrument panels Digital read out display PART NO.ELT-316GWB Chip Material GaP Emitted Color Green EVERLIGHT ELECTRONICS CO.,LTD.http : //w

Features

s :.
Industrial standard size. Low power consumption. Categorized for luminous intensity. Pb free.
