EL3H7-G - 4 PIN SSOP PHOTOTRANSISTOR PHOTOCOUPLER

Everlight Electronics

📥 Download Datasheet

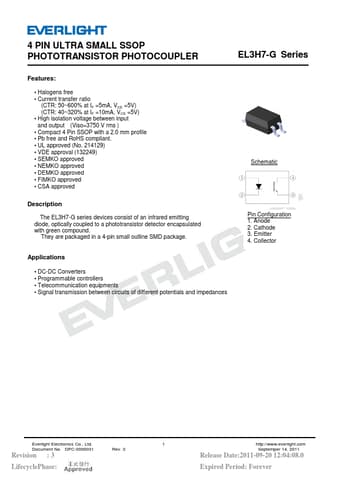

EL3H7-G Datasheet Preview — Preview of EL3H7-G PDF

Datasheet Details

Part number	EL3H7-G
Manufacturer	Everlight Electronics
File Size	448.68 KB
Description	4 PIN SSOP PHOTOTRANSISTOR PHOTOCOUPLER
Datasheet	EL3H7-G-EverlightElectronics.pdf

EL3H7-G Product details

Description

The EL3H7-G series devices consist of an infrared emitting diode, optically coupled to a phototransistor detector encapsulated with green compound. DC-DC Converters Programmable controllers Telecommunication equipments Signal transmission between circuits of different potentials and impedances Schematic Pin Configuration 1. Anode 2. Cathode 3. Emitter 4. Collector Everlight Electronics

Features

.
Halogens free.
Current transfer ratio (CTR: 50~600% at IF =5mA, VCE =5V) (CTR: 40~320% at IF =10mA, VCE =5V).
High isolation voltage between input and output (Viso=3750 V rms ).
Compact 4 Pin SSOP with a 2.0 mm profile.
Pb free and RoHS compliant.
UL approved (No. 214129).
VDE approval (132249).
SEMKO approved.
NEMKO approved.
DEMKO approved.
FIMKO approved.
CSA approved.
