ES8323S - Low Power Audio CODEC

📥 Download Datasheet

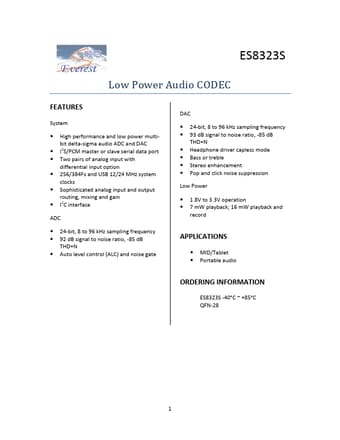

ES8323S Datasheet Preview — Preview of ES8323S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ES8323S
Manufacturer	Everest Semiconductor
File Size	796.16 KB
Description	Low Power Audio CODEC
Datasheet	ES8323S-EverestSemiconductor.pdf

ES8323S Product details

Features

System.
High performance and low power multibit delta-sigma audio ADC and DAC.
I2S/PCM master or slave serial data port.
Two pairs of analog input with differential input option.
256/384Fs and USB 12/24 MHz system clocks.
Sophisticated analog input and output routing, mixing and gain.
I2C interface ADC.
24-bit, 8 to 96 kHz sampling frequency.
92 dB signal to noise ratio, -85 dB THD+N.
Auto level control (ALC) and no.
