EUP3408 800mA Synchronous Step-Down Converter

EUP3408 Description

EUP3408 1.5MHz, 800mA Synchronous Step-Down Converter with Soft Start .
The EUP3408 is a constant frequency, current mode, PWM step-down converter.

EUP3408 Features

* High Efficiency up to 96% 1.5MHz Constant Switching Frequency 800mA Available Load Current 270µA Typical Quiescent Current 2.5V to 5.5V Input Voltage Range Adjustable Output Voltage as Low as 0.6V 100% Duty Cycle Low Dropout Operation No Schottky Diode Required Short Circuit and Thermal Protection E

EUP3408 Applications

* extending battery life in portable systems. Switching frequency is internally set at 1.5MHz, allowing the use of small surface mount inductors and capacitors. The internal synchronous switch increases efficiency while eliminates the need for an external Schottky diode. The EUP3408 is available in a

📥 Download Datasheet

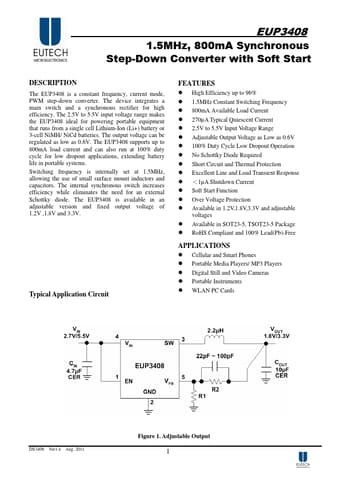

Preview of EUP3408 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EUP3408
Manufacturer
Eutech Microelectronics
File Size
571.02 KB
Datasheet
EUP3408-EutechMicroelectronics.pdf
Description
800mA Synchronous Step-Down Converter
