FRM5J141GW - InGaAs-APD/Preamp Receiver

Description

The FRM5J141GW incorporates a high bandwidth InGaAs PIN photo diode, a GaAs HBT IC amplifier in a hermetically sealed Small Form Factor package (SFF).

The PIN is processed with modern MOVPE techniques resulting in a reliable performance over a wide range of operating conditions.

Features

  • Small Form Factor Package(GW): 9 pins coplanar.
  • Integrated Design Optimizes Performance at Bit Rates up to 12.5Gb/s.
  • High Sensitivity: -19dBm (typ. ).
  • Electrical Differential Output.
  • Wide Bandwidth: 11GHz (typ. ) FRM5J141GW.

📥 Download Datasheet

Datasheet Details

Part number FRM5J141GW
Manufacturer Eudyna Devices
File Size 339.61 KB
Description InGaAs-APD/Preamp Receiver
Datasheet download datasheet FRM5J141GW Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FRM5J143DS InGaAs-PIN/Preamp Receiver Fujitsu
FRM5W232BS Incorporates a 30 micron InGaAs Avalanche Photodiode Fujitsu Media Devices
FRM130 N-Channel MOSFET Transistor Inchange Semiconductor
FRM130D N-Channel Power MOSFET Intersil
FRM130H N-Channel Power MOSFET Intersil

Other Datasheets by Eudyna Devices

Part Number Description
FRM5J141GT InGaAs-APD/Preamp Receiver
FRM5J142GW InGaAs-APD/Preamp Receiver
FRM5N141GT InGaAs-APD/Preamp Receiver
FRM5N141GW InGaAs-APD/Preamp Receiver
FRM5N142GW InGaAs-APD/Preamp Receiver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

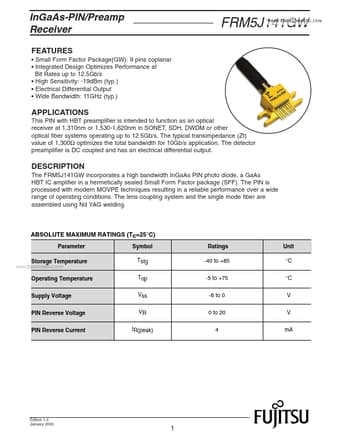

InGaAs-PIN/Preamp Receiver FEATURES • Small Form Factor Package(GW): 9 pins coplanar • Integrated Design Optimizes Performance at Bit Rates up to 12.5Gb/s • High Sensitivity: -19dBm (typ.) • Electrical Differential Output • Wide Bandwidth: 11GHz (typ.) FRM5J141GW APPLICATIONS This PIN with HBT preamplifier is intended to function as an optical receiver at 1,310nm or 1,530-1,620nm in SONET, SDH, DWDM or other optical fiber systems operating up to 12.5Gb/s. The typical transimpedance (Zt) value of 1,300Ω optimizes the total bandwidth for 10Gb/s application. The detector preamplifier is DC coupled and has an electrical differential output.
