FMM5051VF - 13.75-14.5GHz Power Amplifier MMIC

Description

The FMM5051VF is a MMIC amplifier that contains a three-stage amplifier, internally matched, for standard communications in the www.DataSheet4U.com 13.75 to 14.5GHz frequency range.

This product is well suited for VSAT applications as it offers high power, high gain, and low VSWR.

Features

  • High Output Power: 31.5dBm (typ. ) High Linear Gain: 31.5dB (typ. ) Low Input VSWR Broad Band: 13.75 ~ 14.5GHz Impedance Matched Zin/Zout = 50Ω Small Hermetic Metal-Ceramic Package (VF).

📥 Download Datasheet

Datasheet Details

Part number FMM5051VF
Manufacturer Eudyna Devices
File Size 149.34 KB
Description 13.75-14.5GHz Power Amplifier MMIC
Datasheet download datasheet FMM5051VF Datasheet

📁 Similar Datasheet

Other Datasheets by Eudyna Devices

Full PDF Text Transcription

Click to expand full text

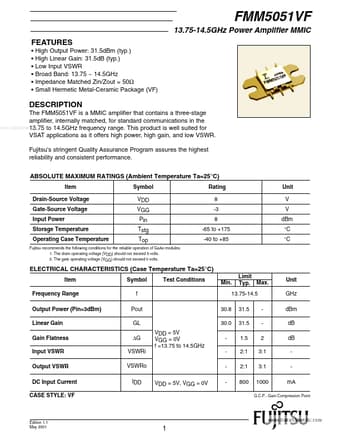

FMM5051VF 13.75-14.5GHz Power Amplifier MMIC FEATURES • • • • • • High Output Power: 31.5dBm (typ.) High Linear Gain: 31.5dB (typ.) Low Input VSWR Broad Band: 13.75 ~ 14.5GHz Impedance Matched Zin/Zout = 50Ω Small Hermetic Metal-Ceramic Package (VF) DESCRIPTION The FMM5051VF is a MMIC amplifier that contains a three-stage amplifier, internally matched, for standard communications in the www.DataSheet4U.com 13.75 to 14.5GHz frequency range. This product is well suited for VSAT applications as it offers high power, high gain, and low VSWR. Fujitsu’s stringent Quality Assurance Program assures the highest reliability and consistent performance.
