FLD5F15CX-E - DWDM Direct Modulation DFB Laser

Description

The laser is capable of 2.5 Gb/s transmission.

It is packaged in a “butterfly” type module.

The module employs a highly stable optical coupling system, coupling the laser output through a built-in optical isolator into a single mode fiber pigtail.

Features

  • Direct Modulation Laser for WDM systems.
  • Optimized for Long Distance Transmission (Dispersion 1800ps/nm).
  • Peak wavelength 1527.99 to 1563.05nm (C-band: 191.8 to 196.2THz, 100GHz spacing).
  • Output Power: 2mW.
  • 14-pin Butterfly type package.
  • Built-in Optical Isolator, Power Monitor PIN-PD, Thermistor, and Cooler.
  • Single Mode Fiber.

📥 Download Datasheet

Datasheet Details

Part number FLD5F15CX-E
Manufacturer Eudyna Devices
File Size 331.05 KB
Description DWDM Direct Modulation DFB Laser
Datasheet download datasheet FLD5F15CX-E Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FLD5F15CA-K Optoelectronic Fujitsu
FLD5F15CA-P Optoelectronic Fujitsu
FLD5F15CA-Q Optoelectronic Fujitsu
FLD5F10NP-A FIBER OPTIC TRANSMITTER Fujitsu
FLD5F10NP-B Optoelectronic Fujitsu

Other Datasheets by Eudyna Devices

Part Number Description
FLD5F15CX-A DWDM Direct Modulation DFB Laser
FLD5F15CX-H Wave DFB Laser
FLD5F6CX-H Wave DFB Laser
FLD3F10NP-A Modulator Integrated DFB Laser
FLD3F7CZ DFB CATV Laser

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

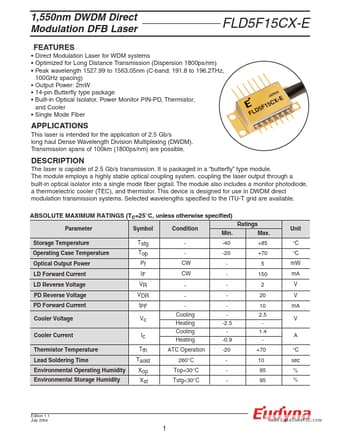

1,550nm DWDM Direct Modulation DFB Laser www.DataSheet4U.com FLD5F15CX-E FEATURES • Direct Modulation Laser for WDM systems • Optimized for Long Distance Transmission (Dispersion 1800ps/nm) • Peak wavelength 1527.99 to 1563.05nm (C-band: 191.8 to 196.2THz, 100GHz spacing) • Output Power: 2mW • 14-pin Butterfly type package • Built-in Optical Isolator, Power Monitor PIN-PD, Thermistor, and Cooler • Single Mode Fiber APPLICATIONS This laser is intended for the application of 2.5 Gb/s long haul Dense Wavelength Division Multiplexing (DWDM). Transmission spans of 100km (1800ps/nm) are possible. DESCRIPTION The laser is capable of 2.5 Gb/s transmission. It is packaged in a “butterfly” type module.
