EMM5317ZW - Single Pole Double Throw Switch 2.4 GHz Wireless LAN Transmit / Receive Applications

Description

ES/EMM5317ZW is a single-throw double-pole (SP2T) GaAs PHEMT switch designed for transmit/receive switching applications in the 0.1 GHz to 3.5 GHz frequency range.

Features

  • High Input P0.1dB: 34 dBm Typ Low Insertion Loss: 0.45 dB Typ at 2.4 GHz High Isolation: 25 dB Typ at 2.4 GHz GaAs PHEMT technology Small size and low-cost SC-70 / SOT363 package Single supply voltage operation.

📥 Download Datasheet

Datasheet Details

Part number EMM5317ZW
Manufacturer Eudyna Devices
File Size 81.01 KB
Description Single Pole Double Throw Switch 2.4 GHz Wireless LAN Transmit / Receive Applications
Datasheet download datasheet EMM5317ZW Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
EMM5077VU C-Band Power Amplifier MMIC SUMITOMO
EMM5077VUT C-Band Power Amplifier MMIC SUMITOMO
EMM5078ZV C-Band Power Amplifier MMIC SUMITOMO
EMM5078ZVT C-Band Power Amplifier MMIC SUMITOMO
EMM5079ZB X / Ku-Band Power Amplifier MMIC SUMITOMO

Other Datasheets by Eudyna Devices

Part Number Description
EMM5322ZU Double Pole Double Throw GaAs PHEMT Switch
EMM5328ZW Single Pole Double Throw Switch 0.1 - 6 GHz Wireless LAN Transmit / Receive Applications
EMM5068VU X-Band Power Amplifier MMIC
EMM5074VU C-Band Power Amplifier MMIC
EMM5075VU Ku-Band Power Amplifier MMIC

Full PDF Text Transcription

Click to expand full text

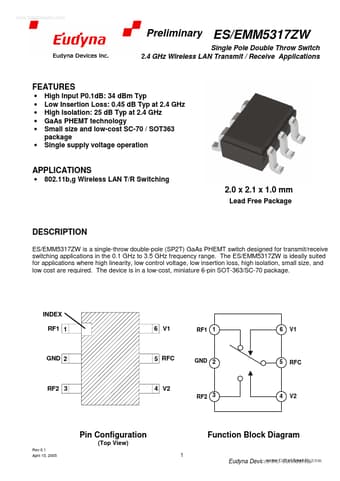

www.DataSheet4U.com Preliminary ES/EMM5317ZW Single Pole Double Throw Switch 2.4 GHz Wireless LAN Transmit / Receive Applications FEATURES • • • • • • High Input P0.1dB: 34 dBm Typ Low Insertion Loss: 0.45 dB Typ at 2.4 GHz High Isolation: 25 dB Typ at 2.4 GHz GaAs PHEMT technology Small size and low-cost SC-70 / SOT363 package Single supply voltage operation APPLICATIONS • 802.11b,g Wireless LAN T/R Switching 2.0 x 2.1 x 1.0 mm Lead Free Package DESCRIPTION ES/EMM5317ZW is a single-throw double-pole (SP2T) GaAs PHEMT switch designed for transmit/receive switching applications in the 0.1 GHz to 3.5 GHz frequency range.
