APA4835 Stereo 2.8W Audio Power Amplifier with DC Volume Control and Selectable Gain

APA4835 Description

APA4835 Stereo 2.8W Audio Power Amplifier with DC Volume Control and Selectable Gain .
The APA4835 is a monolithic integrated circuit , which provides DC volume control , and a stereo bridged audio power amplifiers capable of producing 2.

APA4835 Features

* Operating Voltage : 3.3V to 5V Stereo switchable bridged/single-ended power amplifiers DC Volume Control Interface , 0dB to
* 105dB Low Supply Current , IDD = 13mA at Stereo BTL Low Shutdown Current , IDD = 0.7µA Bridge-Tie

APA4835 Applications

* The attenuator range of the volume control in APA4835 is from 0dB (DC_Vol=0.7VDD) to
* 105dB (DC_Vol=0V) with 32 steps. Both of the depop circuitry and the thermal shutdown protection circuitry are integrated in APA4835 , that reduces pops and clicks noise during power up or shutdown mode op

📥 Download Datasheet

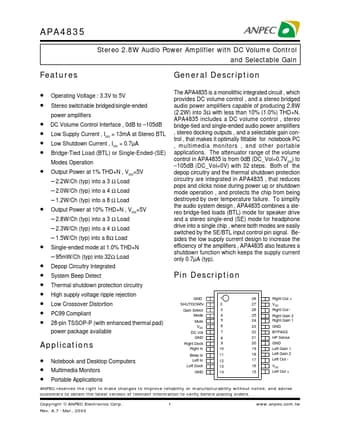

Preview of APA4835 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APA4835
Manufacturer
Etc
File Size
214.03 KB
Datasheet
APA4835_ETC.pdf
Description
Stereo 2.8W Audio Power Amplifier with DC Volume Control and Selectable Gain
