TVMNG30H 60V N-Channel MOSFET

Eris

Description

TVMNG30H 60V N-Channel MOSFET S G D SOT-883 .

📥 Download Datasheet

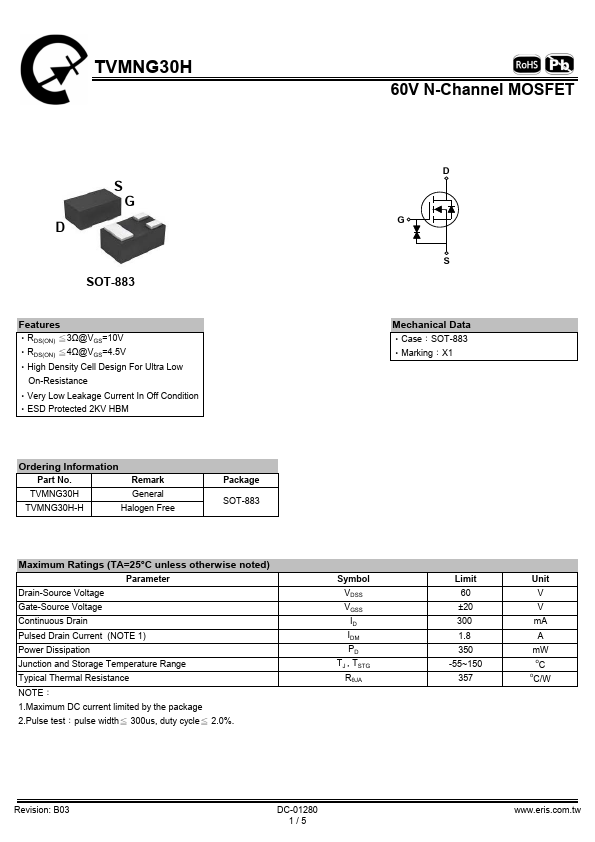

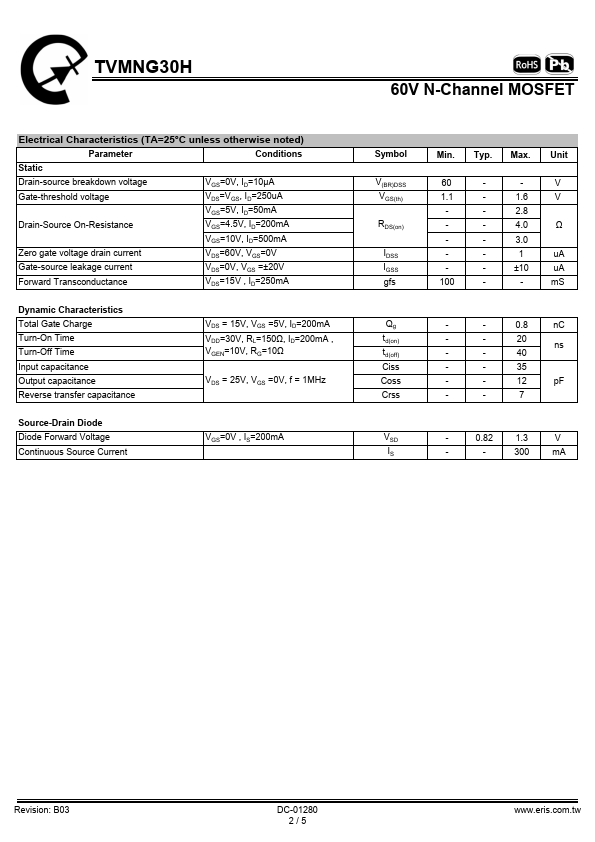

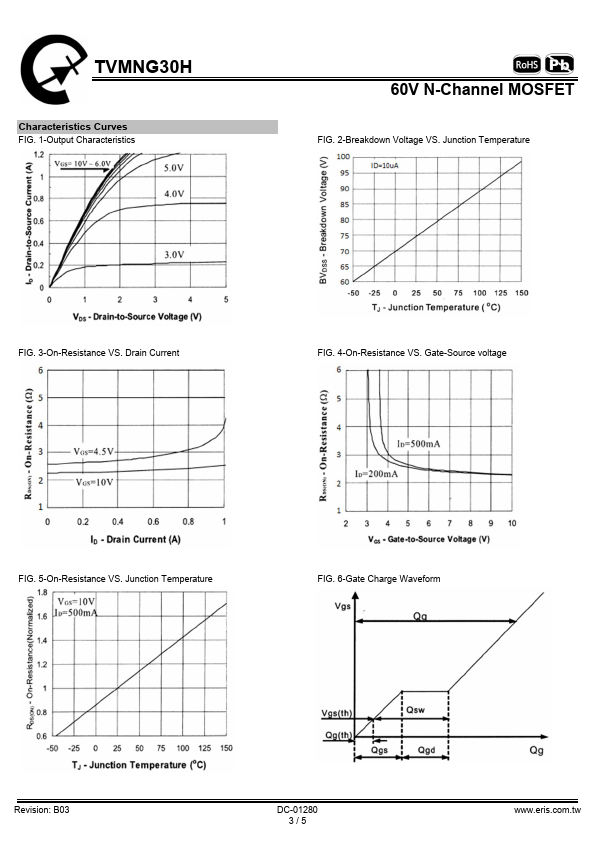

TVMNG30H Datasheet Preview — Preview of TVMNG30H PDF

Datasheet Specifications

Part number: TVMNG30H
Manufacturer: Eris
File Size: 647.38 KB
Datasheet: TVMNG30H-Eris.pdf
Description: 60V N-Channel MOSFET

Features

* ‧RDS(ON) ≦3Ω@VGS=10V ‧RDS(ON) ≦4Ω@VGS=4.5V ‧High Density Cell Design For Ultra Low On-Resistance ‧Very Low Leakage Current In Off Condition ‧ESD Protected 2KV HBM Ordering Information Part No. Remark TVMNG30H General TVMNG30H-H Halogen Free Package SOT-883 Maximum Ratings (TA=25°C unless ot

Applications

* shall assume all risks of such use and will agree to hold Eris and all the companies whose products are represented on Eris website, harmless against all damages.
* No license, express or implied, by estoppels or otherwise, to any intellectual property is granted by this document or by any condu
