SP2040C, SP2020C - Schottky Barrier Rectifiers

SP2040C Description

SP20xxC SERIES Schottky Barrier Rectifiers ITO-220AB .

SP2040C Features

* ‧Guard Ring for Over Voltage Protection ‧High Forward Surge Capability ‧High Frequency Operation Primary Characteristics IF 20 A VRRM 20~200 V IFSM 150 A IF=10A @ VF 0.55, 0.75, 0.85, 0.92 V TJ max 125, 150 °C Mechanical Data ‧Case：ITO-220AB ‧Case Material：Molded Plastic, UL Flammabi

SP2040C Applications

* shall assume all risks of such use and will agree to hold Eris and all the companies whose products are represented on Eris website, harmless against all damages.
* No license, express or implied, by estoppels or otherwise, to any intellectual property is granted by this document or by any condu

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SP2040C, SP2020C. Please refer to the document for exact specifications by model.

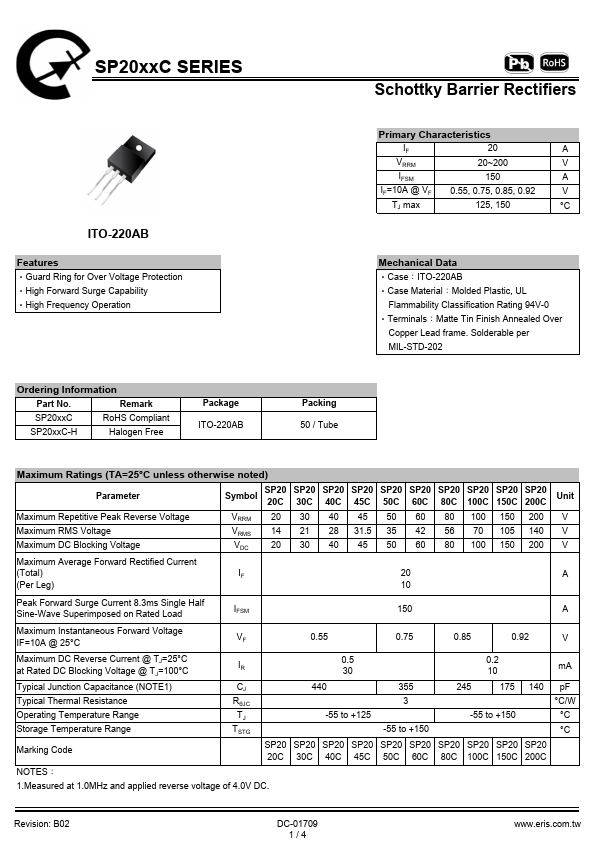

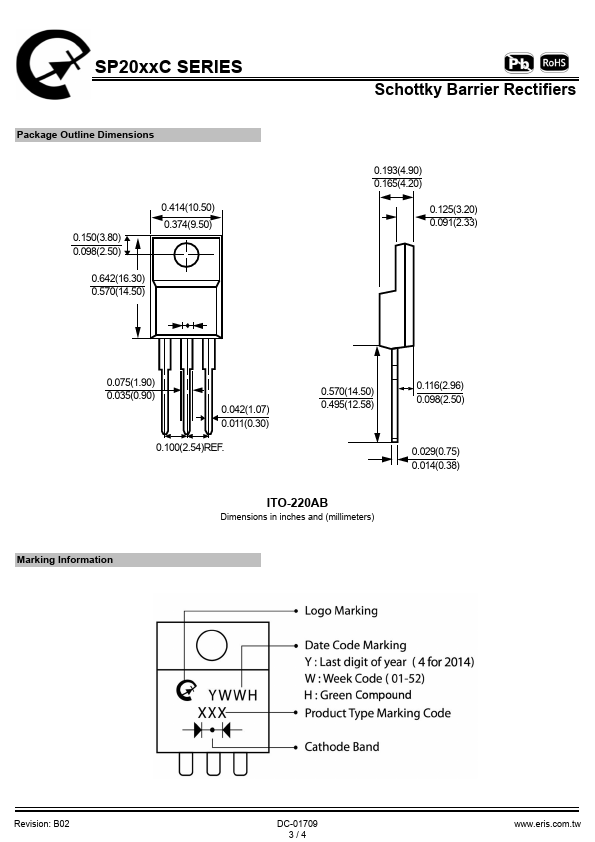

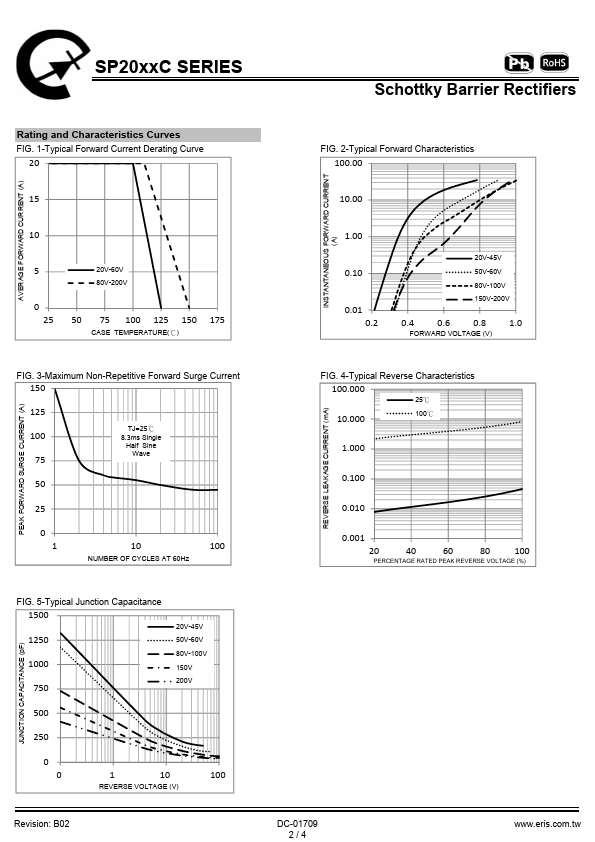

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SP2040C, SP2020C
Manufacturer
Eris
File Size
266.46 KB
Datasheet
SP2020C-Eris.pdf
Description
Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SP2040C, SP2020C.
Please refer to the document for exact specifications by model.
