SP1620C - Schottky Barrier Rectifiers

Name: SP1620C
SKU: SP1620C-1588393

Eris

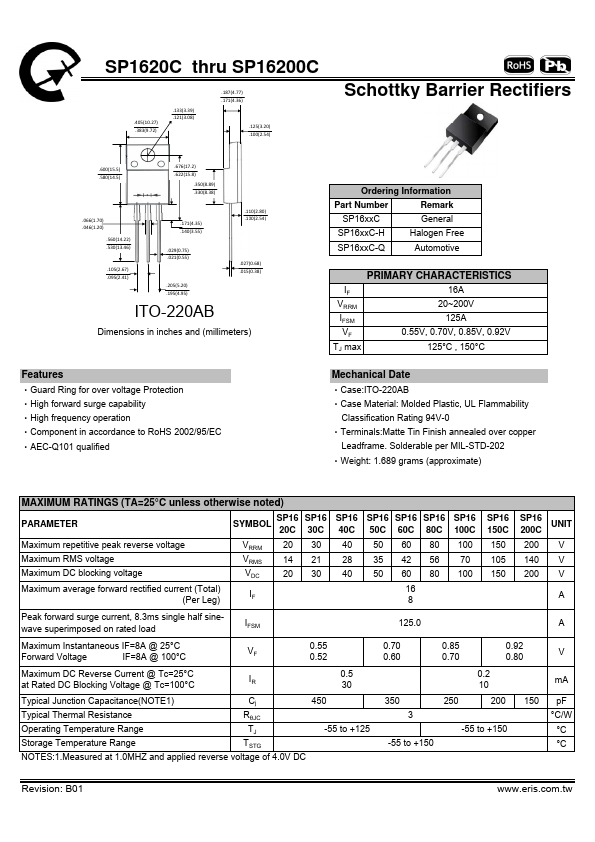

The SP1620C by Eris is a Schottky Barrier Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	SP1620C
Manufacturer	Eris
File Size	234.82 KB
Description	Schottky Barrier Rectifiers
Datasheet	SP1620C-Eris.pdf

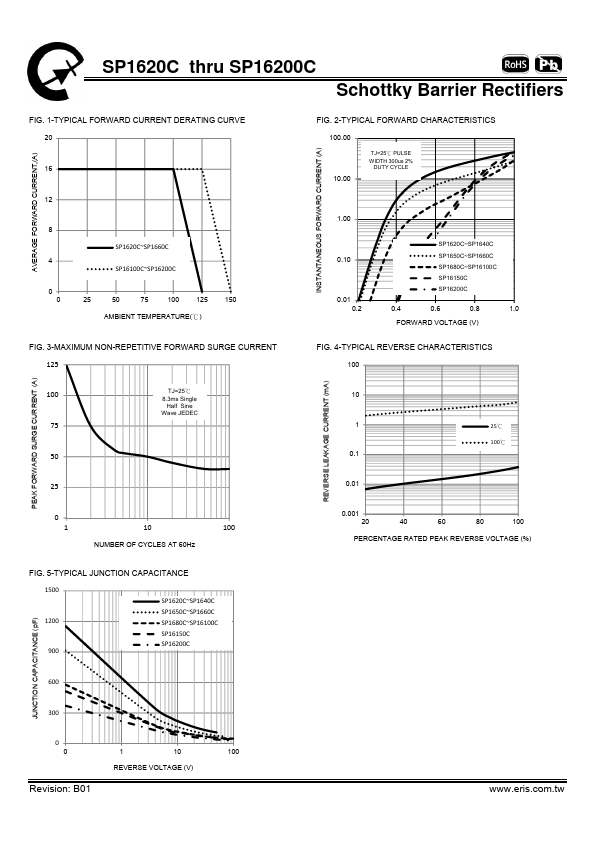

Additional preview pages of the SP1620C datasheet.

‧Guard Ring for over voltage Protection ‧High forward surge capability ‧High frequency operation ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Ordering Information Part Number SP16xxC Remark General SP16xxC-H Halogen Free SP16xxC-Q Automotive.
