SM580AFS, SM520AFS Schottky Barrier Rectifiers

SM580AFS Description

SM5xxxAFS SERIES Schottky Barrier Rectifiers SMAF-S .

SM580AFS Features

* ‧Schottky brrier chip ‧Low power loss,high efficiency ‧Ideally suited for automatic assembly ‧Surge overload rating to 100A peak Primary Characteristics IF 5 A VRRM 20~200 V IFSM 100 A VF 0.55、0.7、0.85、0.92 V TJ max 125、150 °C Mechanical Data ‧Case：Molded plastic SMAF-S ‧Case Materi

SM580AFS Applications

* shall assume all risks of such use and will agree to hold Eris and all the companies whose products are represented on Eris website, harmless against all damages.
* No license, express or implied, by estoppels or otherwise, to any intellectual property is granted by this docum

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM580AFS, SM520AFS. Please refer to the document for exact specifications by model.

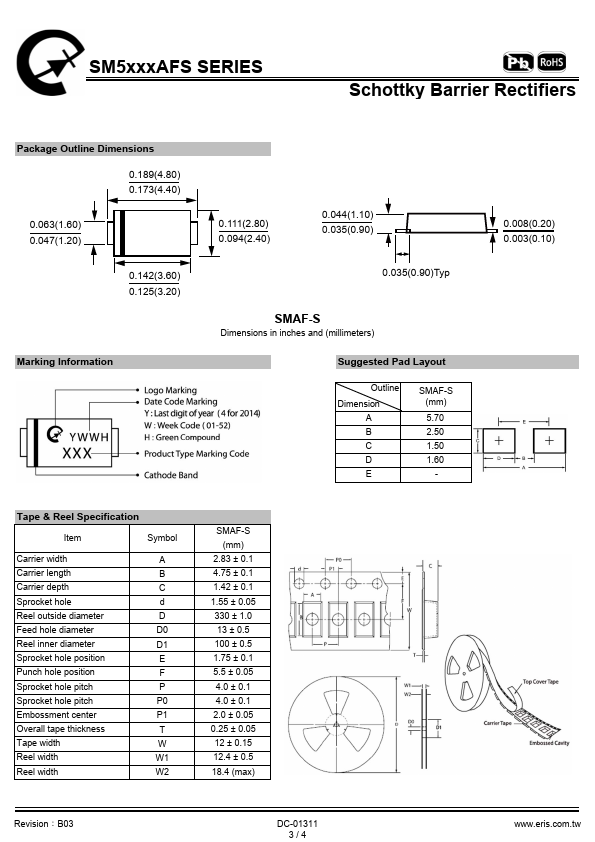

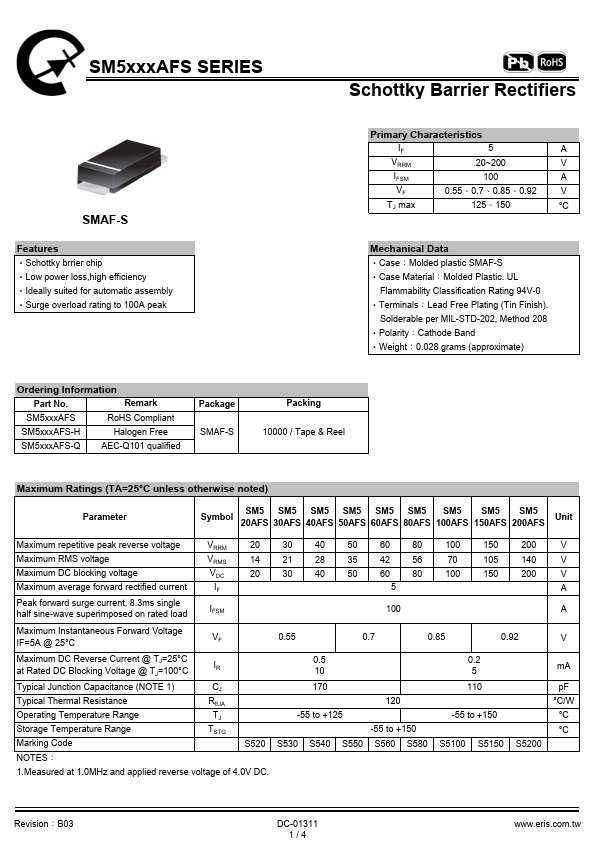

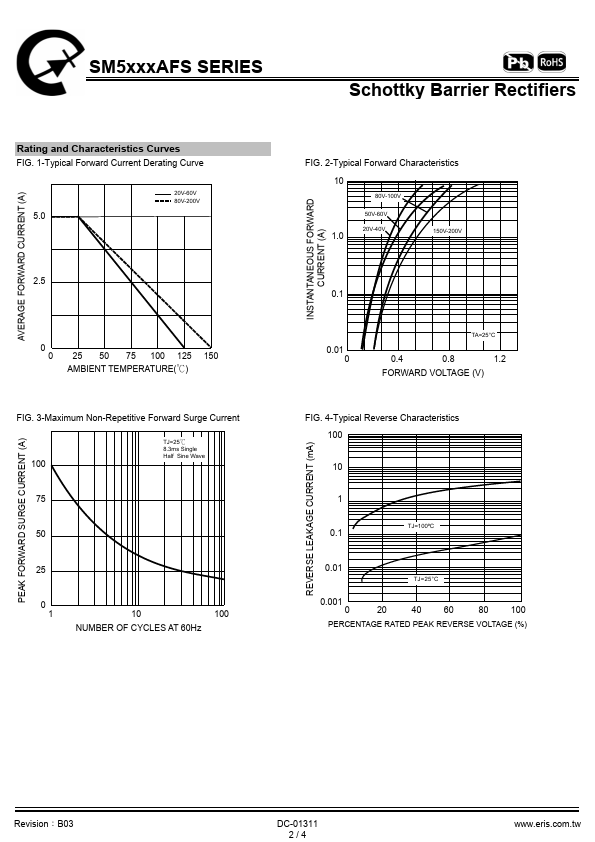

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SM580AFS, SM520AFS
Manufacturer
Eris
File Size
287.04 KB
Datasheet
SM520AFS-Eris.pdf
Description
Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SM580AFS, SM520AFS.
Please refer to the document for exact specifications by model.
