SM550AFS, SM520AFS - Schottky Barrier Rectifiers

Datasheet Details

Part number	SM550AFS, SM520AFS
Manufacturer	Eris
File Size	287.04 KB
Description	Schottky Barrier Rectifiers
Datasheet	SM520AFS-Eris.pdf
Note	This datasheet PDF includes multiple part numbers: SM550AFS, SM520AFS. Please refer to the document for exact specifications by model.

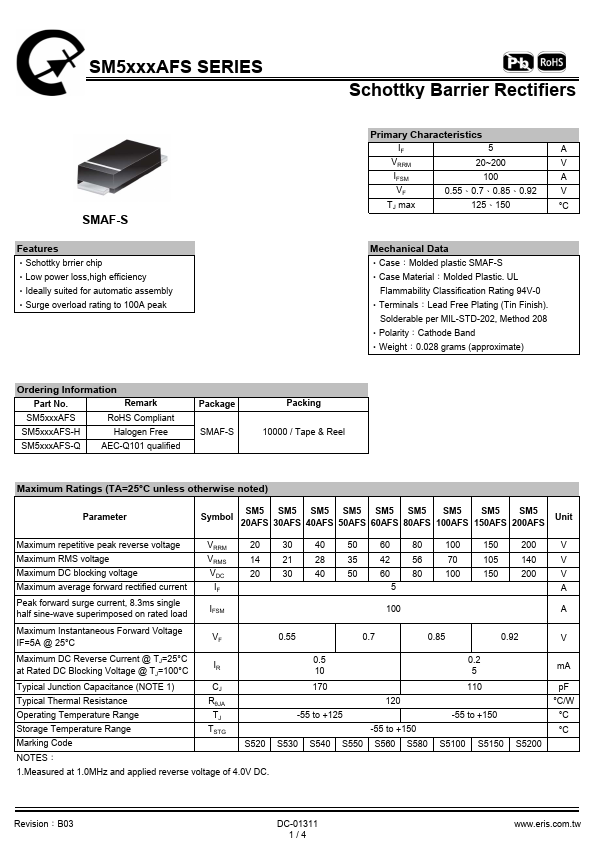

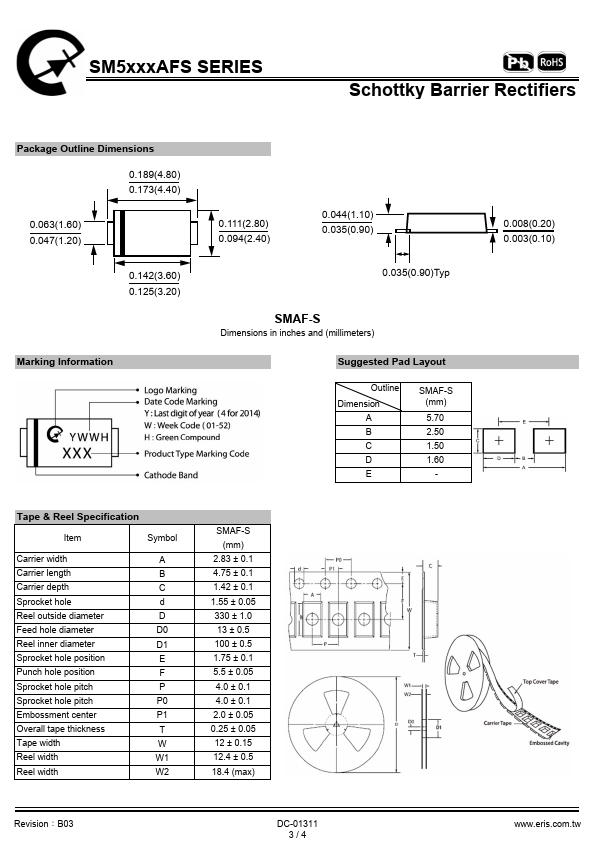

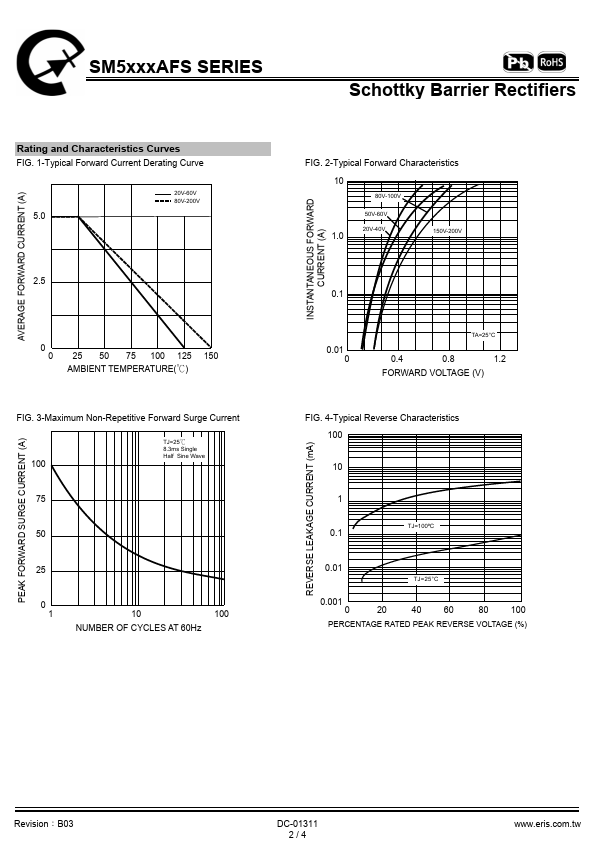

‧Schottky brrier chip ‧Low power loss,high efficiency ‧Ideally suited for automatic assembly ‧Surge overload rating to 100A peak Primary Characteristics IF 5 A VRRM 20~200 V IFSM 100 A VF 0.55、0.7、0.85、0.92 V TJ max 125、150 °C Mechanical Data ‧Case：Molded plastic SMAF-S ‧Case Material：Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals：Lead Free Plating (Tin Finish). Solderable per MIL-STD-202, Method 208 ‧Polarity：Cathode Band ‧Weight：0.028 grams (approximate.
