SM40150CD2, SM4020CD2 - Schottky Barrier Rectifiers

Name: SM40150CD2
SKU: SM40150CD2-1588150

Eris

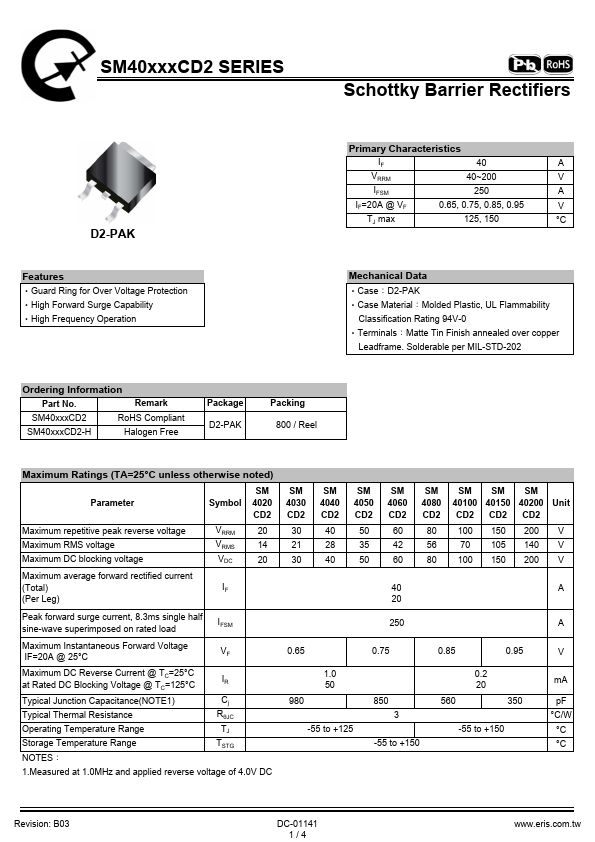

The SM40150CD2 by Eris is a Schottky Barrier Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	SM40150CD2, SM4020CD2
Manufacturer	Eris
File Size	339.83 KB
Description	Schottky Barrier Rectifiers
Datasheet	SM4020CD2-Eris.pdf
Note	This datasheet PDF includes multiple part numbers: SM40150CD2, SM4020CD2. Please refer to the document for exact specifications by model.

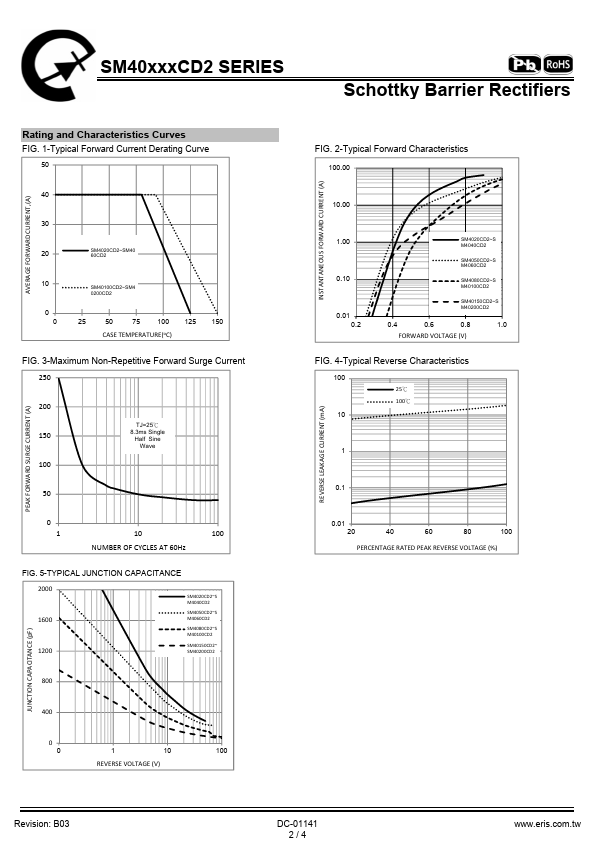

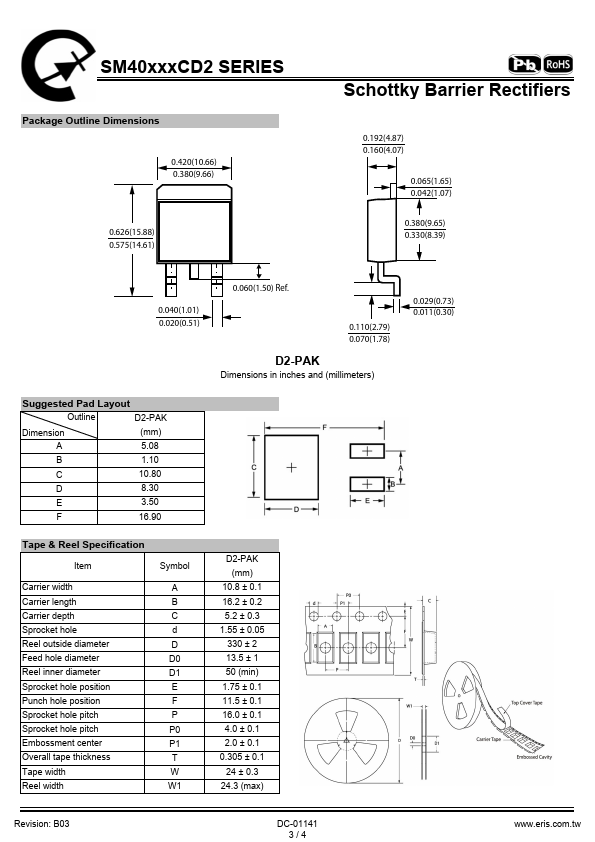

Additional preview pages of the SM40150CD2 datasheet.

‧Guard Ring for Over Voltage Protection ‧High Forward Surge Capability ‧High Frequency Operation Mechanical Data ‧Case：D2-PAK ‧Case Material：Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Terminals：Matte Tin Finish annealed over copper Leadframe. Solderable per MIL-STD-202 Ordering Information Part No. Remark SM40xxxCD2 RoHS Compliant SM40xxxCD2-H Halogen Free Package D2-PAK Packing 800 / Reel Maximum Ratings (TA=25°C unless otherwise noted) Parameter Maximum repetitive.
