SM1520SD2 - Schottky Barrier Rectifiers

Eris

📥 Download Datasheet

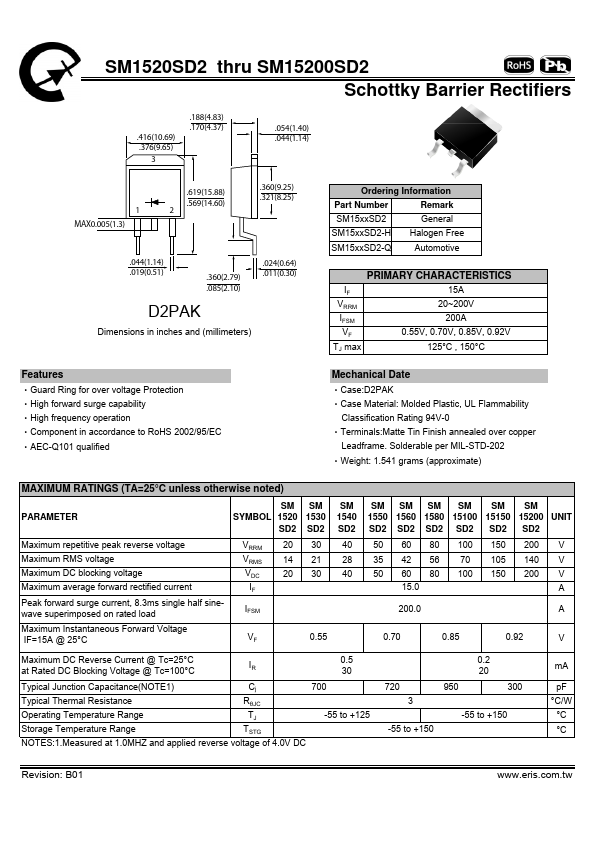

SM1520SD2 Datasheet Preview — Preview of SM1520SD2 PDF

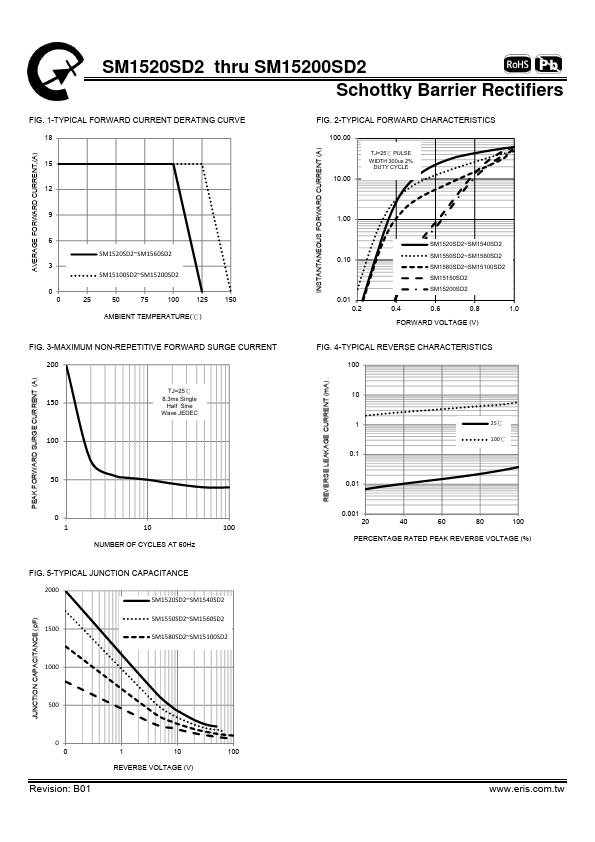

datasheet Preview Page 2

Datasheet Details

Part number	SM1520SD2
Manufacturer	Eris
File Size	205.32 KB
Description	Schottky Barrier Rectifiers
Datasheet	SM1520SD2-Eris.pdf

SM1520SD2 Product details

Features

‧Guard Ring for over voltage Protection ‧High forward surge capability ‧High frequency operation ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Ordering Information Part Number SM15xxSD2 Remark General SM15xxSD2-H Halogen Free SM15xxSD2-Q Automotive.
