MBR2060C - Schottky Barrier Rectifiers

Product Overview

Eris

Part number	MBR2060C
Manufacturer	Eris
File Size	219.27 KB
Description	Schottky Barrier Rectifiers
Datasheet	MBR2060C Datasheet
Note	This datasheet PDF includes multiple part numbers: MBR2060C, MBR2020C. Please refer to the document for exact specifications by model.

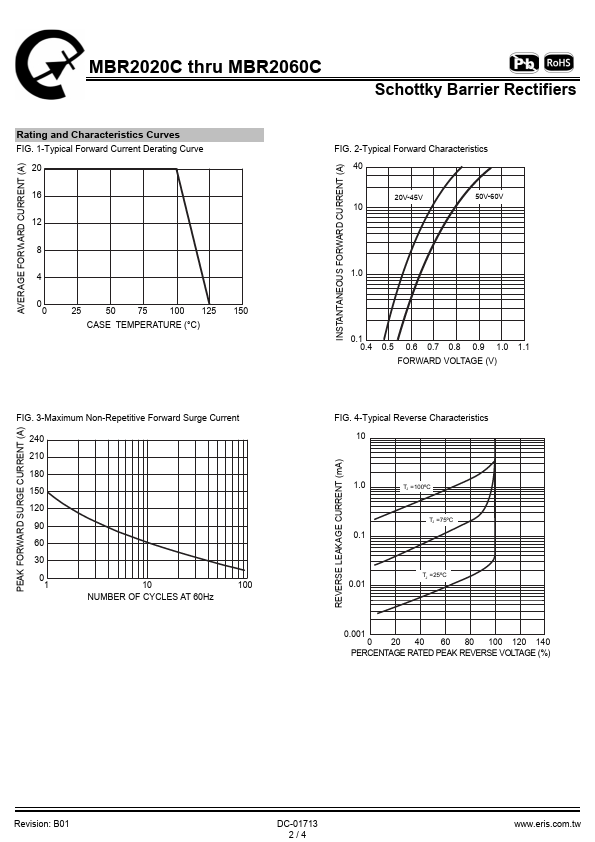

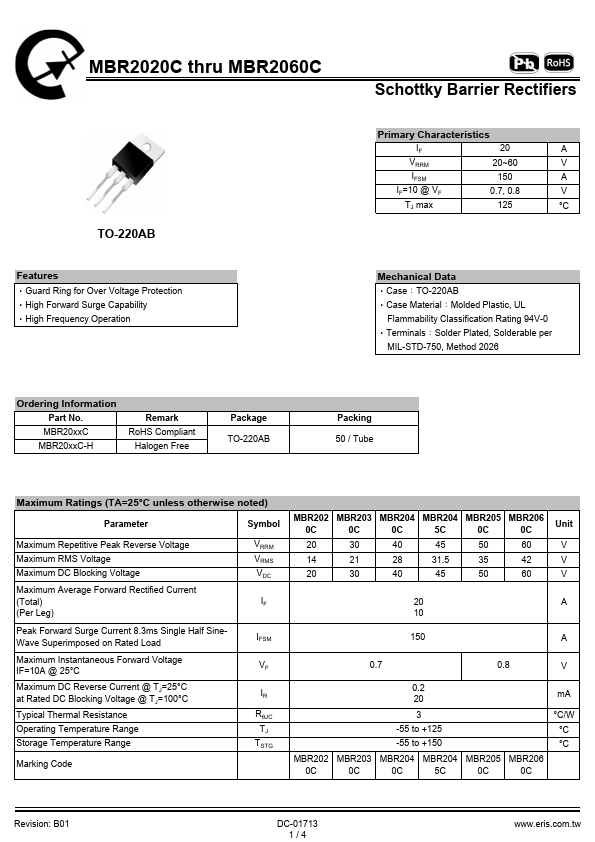

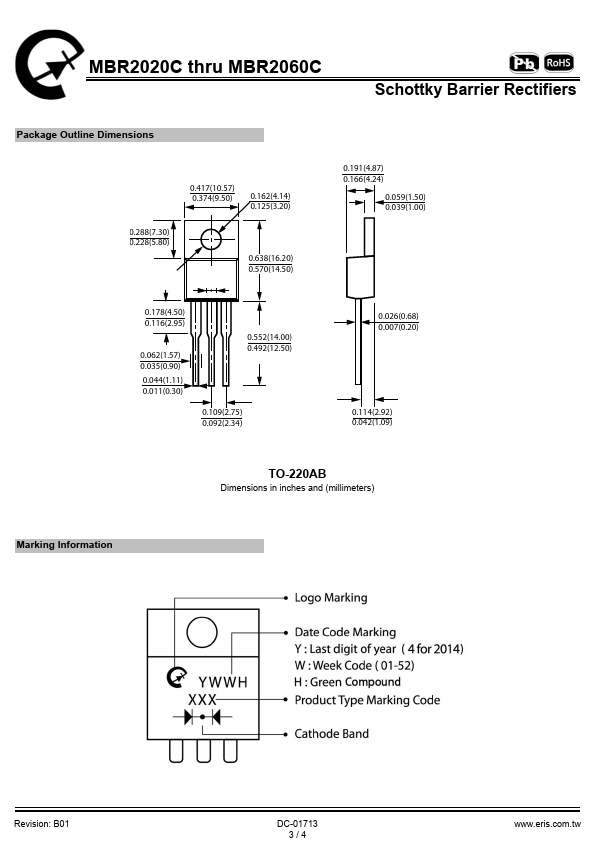

Additional preview pages of the MBR2060C datasheet.

‧Guard Ring for Over Voltage Protection ‧High Forward Surge Capability ‧High Frequency Operation Schottky Barrier Rectifiers Primary Characteristics IF 20 A VRRM 20~60 V IFSM 150 A IF=10 @ VF 0.7, 0.8 V TJ max 125 °C Mechanical Data ‧Case：TO-220AB ‧Case Material：Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Terminals：Solder Plated, Solderable per MIL-STD-750, Method 2026 Ordering Information Part No. MBR20xxC MBR20xxC-H Remark RoHS Compliant Halogen Free Packa.
