EBRT5E150D - Excellent Schottky Barrier Rectifiers

Product Overview

Eris

Part number	EBRT5E150D
Manufacturer	Eris
File Size	190.84 KB
Description	Excellent Schottky Barrier Rectifiers
Datasheet	EBRT5E150D Datasheet

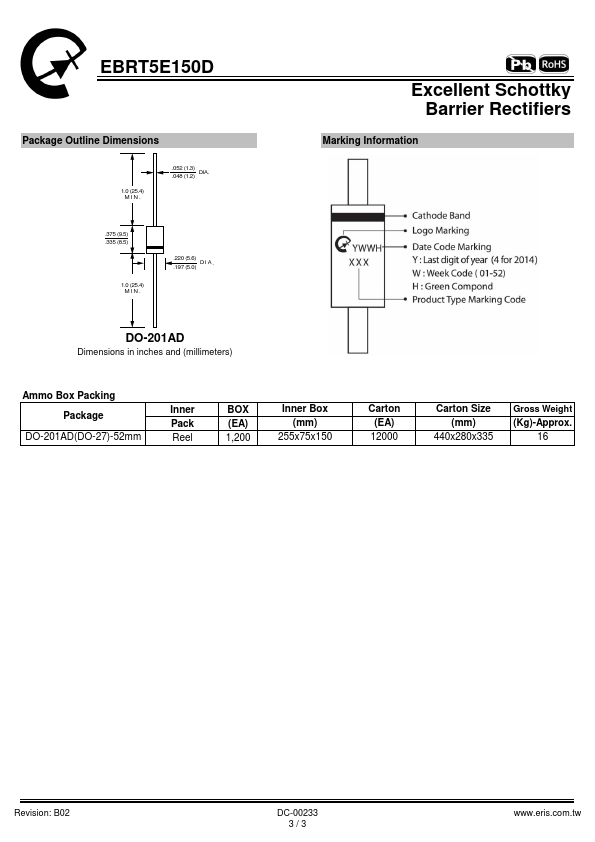

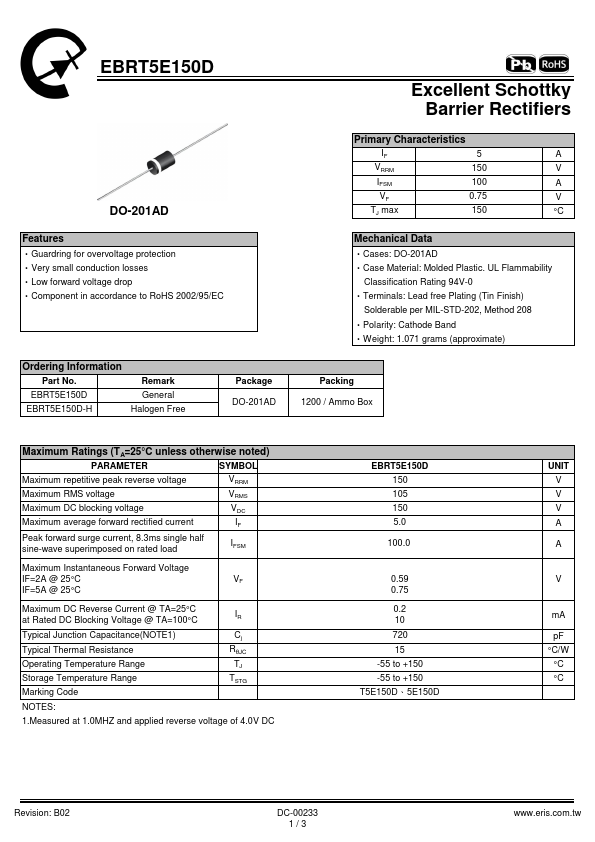

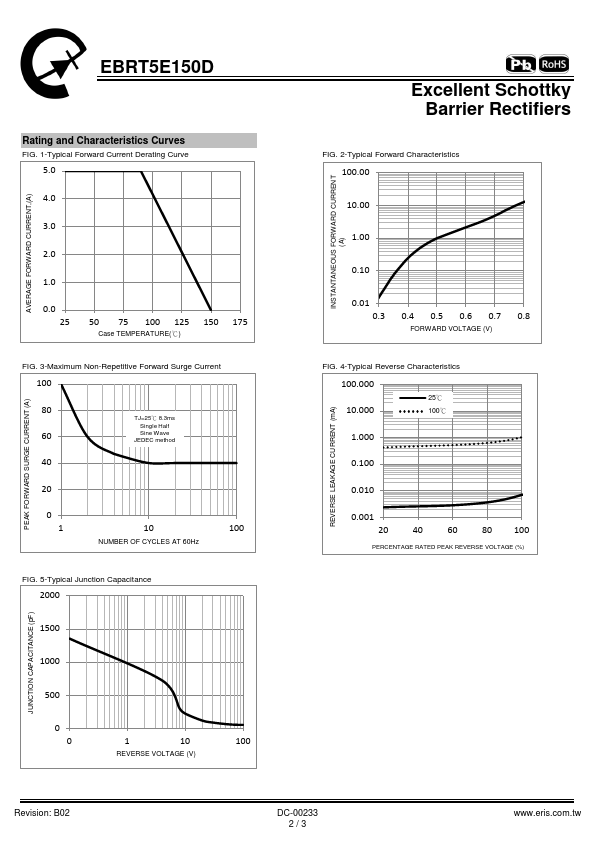

Additional preview pages of the EBRT5E150D datasheet.

‧Guardring for overvoltage protection ‧Very small conduction losses ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC Ordering Information Part No. Remark EBRT5E150D General EBRT5E150D-H Halogen Free Package DO-201AD Excellent Schottky Barrier Rectifiers Primary Characteristics IF 5 A VRRM 150 V IFSM 100 A VF 0.75 V TJ max 150 °C Mechanical Data ‧Cases: DO-201AD ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: L.
