EBRT15L80C - Excellent Schottky Barrier Rectifiers

Product Overview

Eris

Part number	EBRT15L80C
Manufacturer	Eris
File Size	333.46 KB
Description	Excellent Schottky Barrier Rectifiers
Datasheet	EBRT15L80C Datasheet

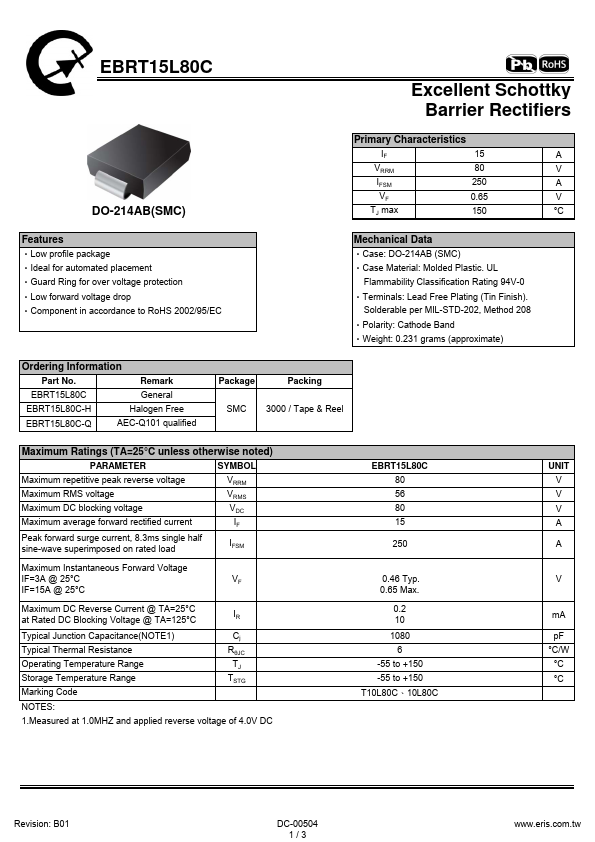

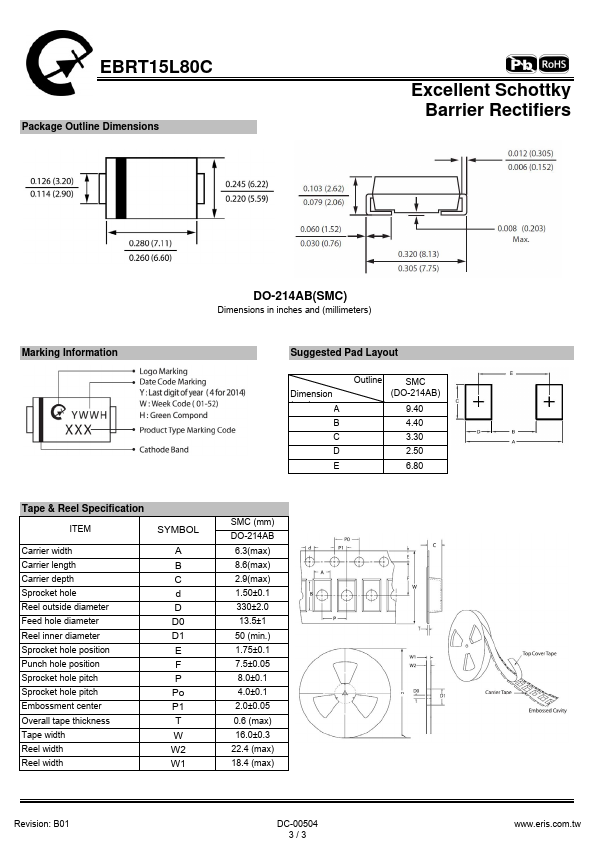

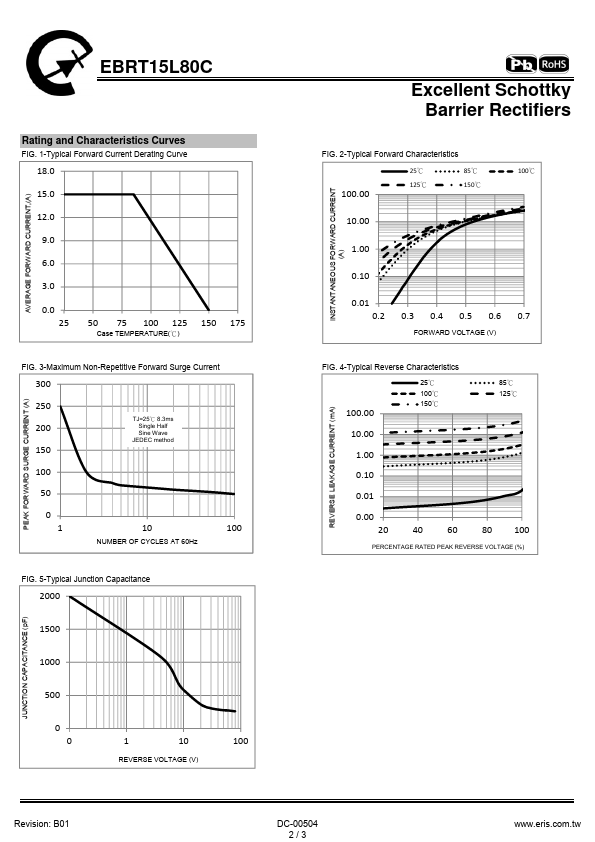

Additional preview pages of the EBRT15L80C datasheet.

‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC Mechanical Data ‧Case: DO-214AB (SMC) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead Free Plating (Tin Finish). Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.231 grams (approximate) Ordering Information Part No. Remark EBRT15L80C General EBRT15L80C-H Halog.
