EBRT10L60D - Excellent Schottky Barrier Rectifiers

Product Overview

Eris

Part number	EBRT10L60D
Manufacturer	Eris
File Size	191.57 KB
Description	Excellent Schottky Barrier Rectifiers
Datasheet	EBRT10L60D Datasheet

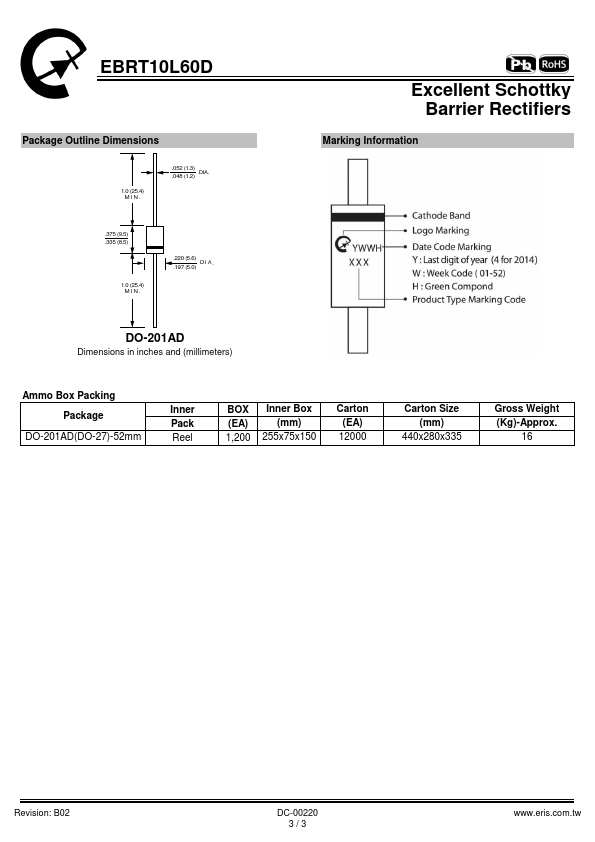

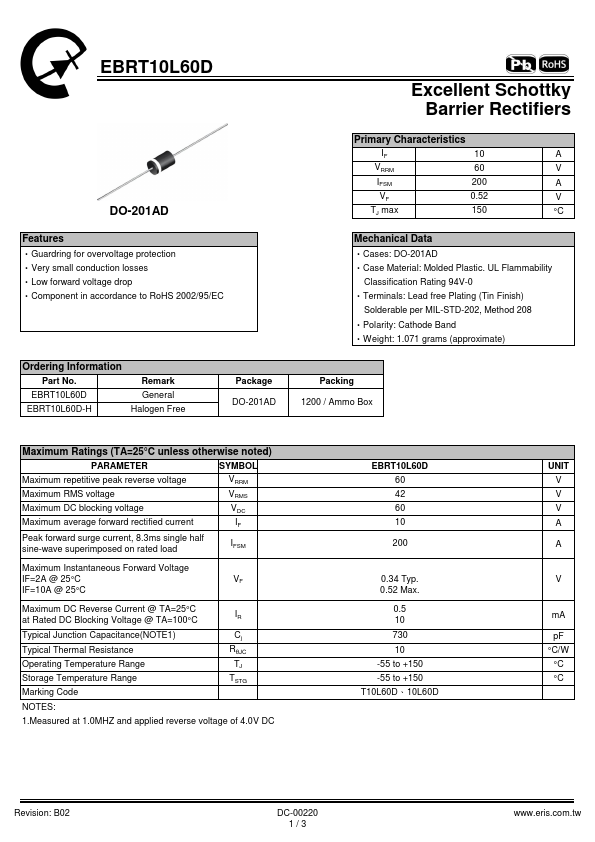

Additional preview pages of the EBRT10L60D datasheet.

‧Guardring for overvoltage protection ‧Very small conduction losses ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC Ordering Information Part No. Remark EBRT10L60D General EBRT10L60D-H Halogen Free Package DO-201AD Excellent Schottky Barrier Rectifiers Primary Characteristics IF 10 A VRRM 60 V IFSM 200 A VF 0.52 V TJ max 150 °C Mechanical Data ‧Cases: DO-201AD ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: L.
