EBRP5L300D - Excellent Schottky Barrier Rectifiers

Product Overview

Eris

Part number	EBRP5L300D
Manufacturer	Eris
File Size	195.63 KB
Description	Excellent Schottky Barrier Rectifiers
Datasheet	EBRP5L300D Datasheet

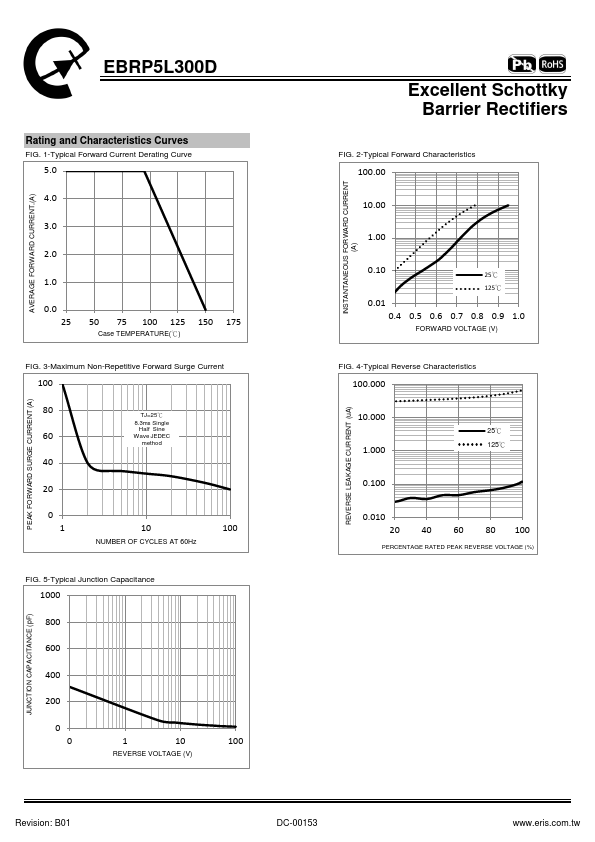

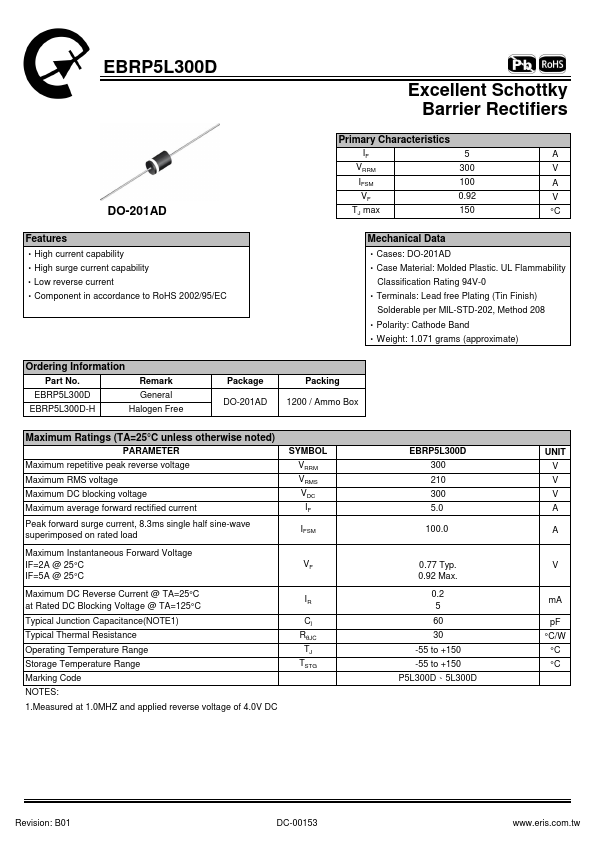

Additional preview pages of the EBRP5L300D datasheet.

‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Mechanical Data ‧Cases: DO-201AD ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 1.071 grams (approximate) Ordering Information Part No. Remark EBRP5L300D General EBRP5L300D-H Halogen Free Package DO-201AD Packing 1200 / Ammo.
