PBL40309 - 3.6 V Differential Power Amplifier for DECT Telecommunications system

Ericsson

The PBL40309 by Ericsson is a 3.6 V Differential Power Amplifier for DECT Telecommunications system. Below is the official datasheet preview.

📥 Download Datasheet

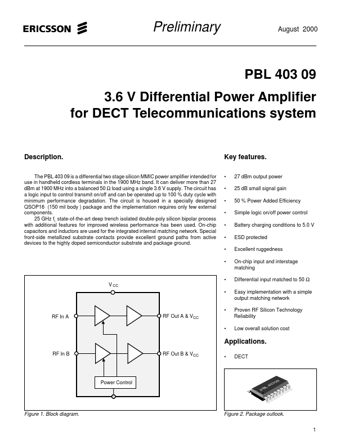

PBL40309 3.6 V Differential Power Amplifier for DECT Telecommunications system by Ericsson - Datasheet Preview — Official preview page of the **PBL40309** 3.6 V Differential Power Amplifier for DECT Telecommunications system datasheet (Ericsson).

Datasheet Details

Part number	PBL40309
Manufacturer	Ericsson
File Size	84.32 KB
Description	3.6 V Differential Power Amplifier for DECT Telecommunications system
Datasheet	PBL40309_Ericsson.pdf
Additional preview pages of the PBL40309 datasheet.

PBL40309 Product details

Description

The PBL 403 09 is a differential two stage silicon MMIC power amplifier intended for use in handheld cordless terminals in the 1900 MHz band.

Features

for improved wireless performance has been used. On-chip capacitors and inductors are used for the integrated internal matching network. Special front-side metallized substrate contacts provide excellent ground paths from active devices to the highly doped semiconductor substrate and package ground. Key features.
27 dBm output power 25 dB small signal gain 50 % Power Added Efficiency Simple logic on/off power contro.
