PBL38085 - Integrated circuit for transformerless driving of battery powered EL (electroluminicent) lamps

Description

PBL 380 85 is a monolithic integrated circuit for supplying power to an EL (electroluminicent) lamp.

This is intended to replace the LCD background illumination system in battery powered handheld equipment with a low power EL- lamp.

Features

  • Minimum number of external components for function: 1 choke, 1 filter-capacitor and 1 resistor. Easy adaption to various lamp specifications. Easy dimming function by controlling the duty cycle. Extensive current saving feature compared with LEDs. Power down function.

📥 Download Datasheet

Datasheet Details

Part number PBL38085
Manufacturer Ericsson
File Size 94.10 KB
Description Integrated circuit for transformerless driving of battery powered EL (electroluminicent) lamps
Datasheet download datasheet PBL38085 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PBL301 3 Amps Silicon Bridge Rectifiers LITEON
PBL302 3 Amps Silicon Bridge Rectifiers LITEON
PBL303 3 Amps Silicon Bridge Rectifiers LITEON
PBL304 3 Amps Silicon Bridge Rectifiers LITEON
PBL305 3 Amps Silicon Bridge Rectifiers LITEON

Other Datasheets by Ericsson

Part Number Description
PBL3852 Universal Transmission Circuit
PBL3853 Universal Speech Circuit
PBL38541 Universal Speech Circuit
PBL38570 Universal Speech Circuit
PBL38571 High current Speech and Line interface Circuit

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

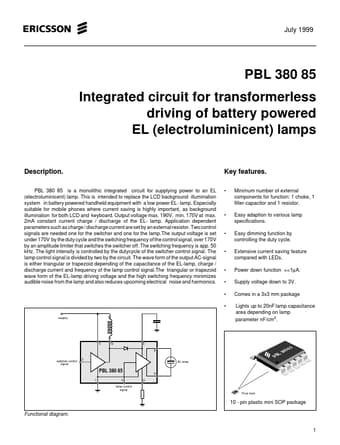

PBL 380 85 July 1999 PBL 380 85 Integrated circuit for transformerless driving of battery powered EL (electroluminicent) lamps Description. PBL 380 85 is a monolithic integrated circuit for supplying power to an EL (electroluminicent) lamp. This is intended to replace the LCD background illumination system in battery powered handheld equipment with a low power EL- lamp. Especially suitable for mobile phones where current saving is highly important, as background illumination for both LCD and keyboard. Output voltage max. 190V, min. 170V at max. 2mA constant current charge / discharge of the EL- lamp. Application dependent parameters such as charge / discharge current are set by an external resistor. Two control signals are needed one for the switcher and one for the lamp.
