TCO-5862, TCO-5860 - TCXO

Name: TCO-5862
SKU: TCO-5862-680629

Epson ToYoCom

The TCO-5862 by Epson ToYoCom is a TCXO. Below is the official datasheet preview.

Datasheet Details

Part number	TCO-5862, TCO-5860
Manufacturer	Epson ToYoCom
File Size	344.09 KB
Description	TCXO
Datasheet	TCO-5860_EpsonToYoCom.pdf
Note	This datasheet PDF includes multiple part numbers: TCO-5862, TCO-5860. Please refer to the document for exact specifications by model.

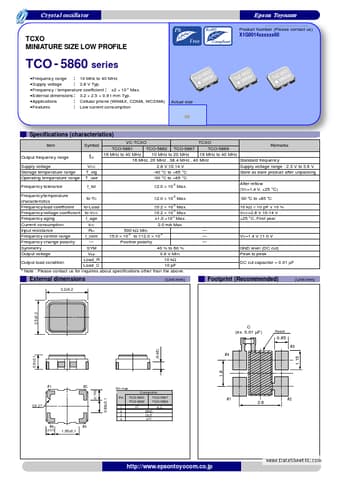

Additional preview pages of the TCO-5862 datasheet.

Low current consumption Actual size Specifications (characteristics) Item Output frequency range Supply voltage Storage temperature range Operating temperature range Frequency tolerance Symbol VC-TCXO TCXO Remarks TCO-5861 TCO-5862 TCO-5867 TCO-5869 16 MHz to 40 MHz 10 MHz to 20 MHz 16 MHz to 40 MHz 16 MHz, 20 MHz , 38.4 MHz , 40 MHz Standard frequency 2.8 V ±0.14 V Supply voltage range : 2.3 V to 3.6 V -40 °C to +85 °C Store as bare product after unpacking -30 °C to +85 °C After reflow ±2.0 ×.
