25P32 - EN25P32

Description

The EN25P32 is a 32M-bit (4096K-byte) Serial Flash memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus.

The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction.

Features

  • Single power supply operation - Full voltage range: 2.7-3.6 volt.
  • 32 M-bit Serial Flash - 32 M-bit/4096 K-byte/16384 pages - 256 bytes per programmable page.
  • High performance - 100MHz clock rate.
  • Low power consumption - 5 mA typical active current - 1 μA typical power down current.
  • Uniform Sector Architecture: - Sixty four 64-Kbyte sectors.
  • Software and Hardware Write Protection: - Write Protect all or portion of memory via software - Enable.

📥 Download Datasheet

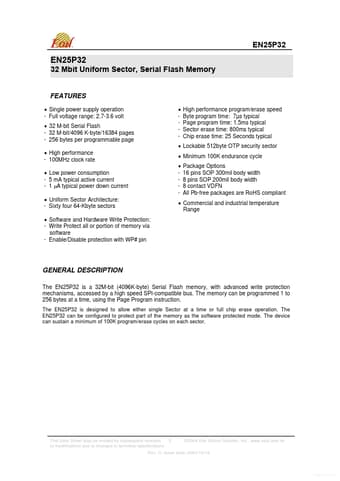

Datasheet preview – 25P32

Datasheet Details

Part number 25P32
Manufacturer Eon Silicon Solution
File Size 490.48 KB
Description EN25P32
Datasheet download datasheet 25P32 Datasheet
Additional preview pages of the 25P32 datasheet.

📁 Similar Datasheet

  • 25P05 - M25P05 (STMicroelectronics)
  • 25P10 - 1 Mbit Low Voltage Paged Flash Memory (STMicroelectronics)
  • 25P10A - 1Mb 3V Serial Flash Embedded Memory (Micron)
  • 25P10AV - M25P10AV (ST Microelectronics)
  • 25P10VP - M25P10 (STMicroelectronics)
  • 25P16 - W25P16 (Winbond)
  • 25P20VP - Serial Flash Memory (STMicroelectronics)
  • 25P40 - M25P40 (ST Microelectronics)
  • 25P40 - 3V 4Mb Serial Flash Embedded Memory (Micron)
  • 25P40VP - 3V 4Mb Serial Flash Embedded Memory (Micron)
Other Datasheets by Eon Silicon Solution

Full PDF Text Transcription

Click to expand full text
EN25P32 EN25P32 32 Mbit Uniform Sector, Serial Flash Memory FEATURES • Single power supply operation - Full voltage range: 2.7-3.6 volt • 32 M-bit Serial Flash - 32 M-bit/4096 K-byte/16384 pages - 256 bytes per programmable page • High performance - 100MHz clock rate • Low power consumption - 5 mA typical active current - 1 μA typical power down current • Uniform Sector Architecture: - Sixty four 64-Kbyte sectors • Software and Hardware Write Protection: - Write Protect all or portion of memory via software - Enable/Disable protection with WP# pin • High performance program/erase speed Byte program time: 7µs typical Page program time: 1.
