DMD43153F - Four Lamp DC to AC Inverter

Endicott Research Group

The DMD43153F by Endicott Research Group is a Four Lamp DC to AC Inverter. Below is the official datasheet preview.

📥 Download Datasheet

DMD43153F Four Lamp DC to AC Inverter by Endicott Research Group - Datasheet Preview — Official preview page of the **DMD43153F** Four Lamp DC to AC Inverter datasheet (Endicott Research Group).

Datasheet Details

Part number	DMD43153F
Manufacturer	Endicott Research Group
File Size	154.53 KB
Description	Four Lamp DC to AC Inverter
Datasheet	DMD43153F-EndicottResearchGroup.pdf

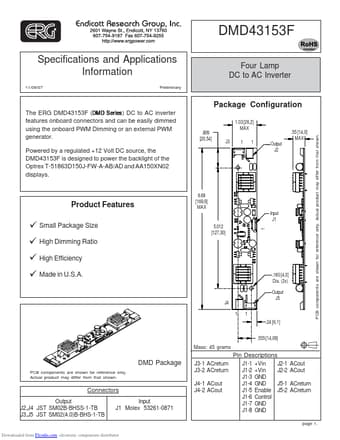

Additional preview pages of the DMD43153F datasheet.

DMD43153F Product details

Description

DMD Package PCB components are shown for reference only.Actual product may differ from that shown.J3-1 ACreturn J3-2 ACreturn J4-1 ACout J4-2 ACout Connectors Output J2,J4 JST SM02B-BHSS-1-TB J3,J5 JST SM02(4.0)B-BHS-1-TB Input J1 Molex 53261-0871 J1-1 J1-2 J1-3 J1-4 J1-5 J1-6 J1-7 J1-8 +Vin +Vin GND GND Enable Control GND GND J2-1 ACout J2-2 ACout J5-1 ACreturn J5-2 ACreturn page 1. Downloaded from Elcodis.com electronic components distributor PCB components are shown for reference o

Features

onboard connectors and can be easily dimmed using the onboard PWM Dimming or an external PWM generator. Powered by a regulated +12 Volt DC source, the DMD43153F is designed to power the backlight of the Optrex T-51863D150J-FW-A-AB/AD and AA150XN02 displays. 6.69 [169,9] MAX Input J1 5.012 [127,30] 1 J3 1 1 Output J2 Product Features 9 Small Package Size 9 High Dimming Ratio 9 High Efficiency 9 Made in U. S. A. .160 [4,0] Dia. (2x) Output J5 1 1 .24 [6,1] .555 [14,09] Mass: 45 grams J4 Pin.
