LES06B48-12V0RAJ, LES06B48-12V0RAJ_eighth_brick_enp_les20_1201150900 - DC-DC / Industry Standard Isolated Eighth Brick

Emerson

The LES06B48-12V0RAJ by Emerson is a DC-DC / Industry Standard Isolated Eighth Brick. Below is the official datasheet preview.

📥 Download Datasheet

LES06B48-12V0RAJ DC-DC / Industry Standard Isolated Eighth Brick by Emerson - Datasheet Preview — Official preview page of the LES06B48-12V0RAJ DC-DC / Industry Standard Isolated Eighth Brick datasheet (Emerson).

Datasheet Details

Part number	LES06B48-12V0RAJ, LES06B48-12V0RAJ_eighth_brick_enp_les20_1201150900
Manufacturer	Emerson
File Size	744.40 KB
Description	DC-DC / Industry Standard Isolated Eighth Brick
Datasheet	LES06B48-12V0RAJ_eighth_brick_enp_les20_1201150900_Emerson.pdf
Note	This datasheet PDF includes multiple part numbers: LES06B48-12V0RAJ, LES06B48-12V0RAJ_eighth_brick_enp_les20_1201150900. Please refer to the document for exact specifications by model.

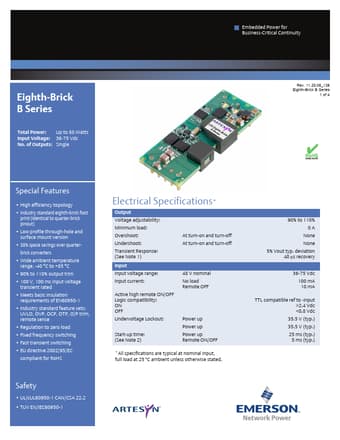

Additional preview pages of the LES06B48-12V0RAJ datasheet.

LES06B48-12V0RAJ Product details

Features

High efficiency topology.
Industry standard eighth-brick foot print (identical to quarter-brick pinout).
Low profile through-hole and surface mount version.
38% space savings over quarter- brick converters.
Wide ambient temperature range, -40 ºC to +85 ºC.
90% to 110% output trim.
100 V, 100 ms input voltage transient rated.
Meets basic insulation requirements of EN60950-1.
Industry standard featur.
