EXB30-48D05-3V3Y - DC-DC / Industry Standard Isolated Half Brick

Download the EXB30-48D05-3V3Y datasheet PDF (EXB30-48D05-3V3Y_exb30s_1191533456 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for dc-dc / industry standard isolated half brick.

Features

  • are included as standard. With full international safety approval including EN60950 and cUL1950, the EXB30 reduces compliance costs and time to market. All specifications are typical at nominal input, full load at 25 °C unless otherwise stated 2 YEAR.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (EXB30-48D05-3V3Y_exb30s_1191533456_Emerson.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number EXB30-48D05-3V3Y
Manufacturer Emerson
File Size 118.58 KB
Description DC-DC / Industry Standard Isolated Half Brick
Datasheet download datasheet EXB30-48D05-3V3Y Datasheet

📁 Similar Datasheet

  • EXB3 - (EXBx Series) Chip Resistor Array (Panasonic)
  • EXB34V - Chip Resistor Array (Panasonic)
  • EXB356 - HYBRID ICS FOR BASE DRIVING OF POWER TRANSISTOR MODULE (Fuji Electric)
  • EXB359 - FUJI BASE DRIVE MODULE (Fuji Electric)
  • EXB38V - Chip Resistor Array (Panasonic)
  • EXB38V220JV - (EXB Series) Chip Resistor Array (Panasonic)
  • EXB3xxxx - (EXBx Series) Chip Resistor Array (Panasonic)
  • EXB-14V - Chip Resistor Array (Panasonic)
  • EXB-18V - Chip Resistor Array (Panasonic)
  • EXB-24V - Chip Resistor Array (Panasonic)
Other Datasheets by Emerson

Full PDF Text Transcription

Click to expand full text

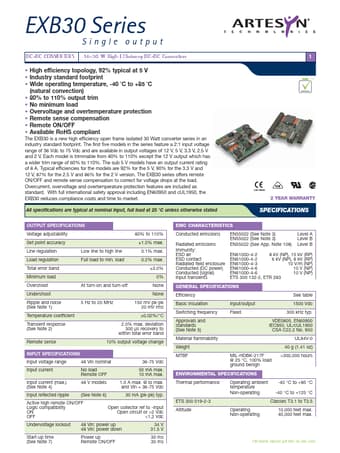

EXB30 Series DC-DC CONVERTERS Single output 16-30 W High Efficiency DC-DC Converters 1 • High efficiency topology, 92% typical at 5 V • Industry standard footprint • Wide operating temperature, -40 ˚C to +85 ˚C (natural convection) • 80% to 110% output trim • No minimum load • Overvoltage and overtemperature protection • Remote sense compensation • Remote ON/OFF • Available RoHS compliant The EXB30 is a new high efficiency open frame isolated 30 Watt converter series in an industry standard footprint. The first five models in the series feature a 2:1 input voltage range of 36 Vdc to 75 Vdc and are available in output voltages of 12 V, 5 V, 3.3 V, 2.5 V and 2 V. Each model is trimmable from 80% to 110% except the 12 V output which has a wider trim range of 60% to 110%.
