25-30 Watts
ALT ALT Dual
Total Power: Input Voltages: No. of Outputs:
25 Watts for Single, 30Watts for Dual output 48 V, 24V Single, Dual
Electrical Specs
Input
Input range Input Surge Efficiency 48Vin:36-75 VDC 24Vin: 18 - 36VDC 48Vin: 100V / 100ms 24Vin: 50V / 100ms 87%@5.0V (Typical)
Control
Enable TTL compatible (positive & negative enable options)
Output
Special Features
• • • • • • 25W Single and 30W Dual output 2:1Input range Open Frame package 1.6” X 2.0” X0.48” Positive and Negative enable function Industry standard package
Regulation Line Load Ripple & Noise
<0.2% <0.5% 75mV p-p for 3.3V and 5V of 48Vin 100mV p-p for 3.

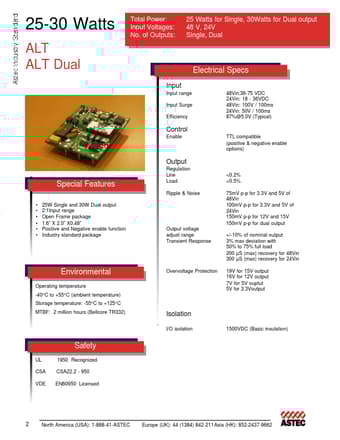

ALT02B48 Datasheet
