ALQ40F48N DC-DC / Industry Standard Isolated Quarter Brick

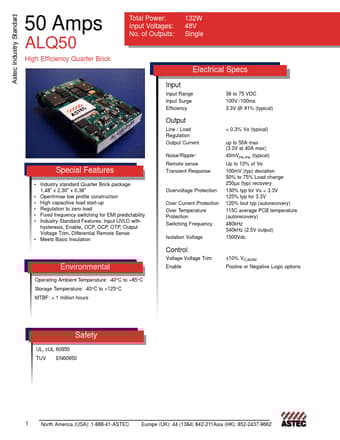

50 Amps ALQ50 High Efficiency Quarter Brick Total Power: Input Voltages: No. of Outputs: 132W 48V Single Electrical Specs Input Input Range Input Surge Efficiency 36 to 75 VDC 100V /100ms 3.3V @ 91% (typical) Output Line / Load Regulation Output Current Noise/Ripple1 < 0.3% Vo (typical) up to 50A max (3.3V at 40A max) 40mVPK-PK (typical) Up to 10% of Vo 100mV (typ) deviation 50% to 75% Load change 250µs (typ) recovery 130% typ for Vo < 3.3V 125% typ for 3.3V 120% Iout typ (autorecovery) 115C.

ALQ40F48N Features

* Industry standard Quarter Brick package 1.48" x 2.30" x 0.38"

* Openfrmae low profile construction

* High capacitive load start-up

* Regulation to zero load

* Fixed frequency switching for EMI predictability

* Industry Standard Features: Input UVLO w
