AEQ15AF48N-6 - DC-DC / Industry Standard Isolated Quarter Brick

Download the AEQ15AF48N-6 datasheet PDF. This datasheet also covers the AEQ15AF48N-6_aeq15af48_rv1 variant, as both devices belong to the same dc-dc / industry standard isolated quarter brick family and are provided as variant models within a single manufacturer datasheet.

Features

  • High efficiency.
  • -40°C to +100°C Baseplate operating temperature.
  • Industry standard package 1.50" x 2.30" x 0.5".
  • High capacitive load limit on start-up.
  • Regulation to zero load.
  • Fixed frequency switching.
  • OCP, OVP, OTP (Autorecovery).
  • Undervoltage Lockout with Hysterisis Noise/Ripple 1 Transient Response (25% to 50% Step Load) Overvoltage Protection Current Limit (Typ) Switching Frequency Capacitive Load Control Output.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AEQ15AF48N-6_aeq15af48_rv1_Emerson.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AEQ15AF48N-6
Manufacturer Emerson
File Size 58.61 KB
Description DC-DC / Industry Standard Isolated Quarter Brick
Datasheet download datasheet AEQ15AF48N-6 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AEQ15 60 Watts Astec America

Other Datasheets by Emerson

Part Number Description
AEQ15AF48N-6L DC-DC / Industry Standard Isolated Quarter Brick
AEQ15AF48N-L DC-DC / Industry Standard Isolated Quarter Brick
AEQ15AF48N DC-DC / Industry Standard Isolated Quarter Brick
AEQ15AF48 DC-DC / Industry Standard Isolated Quarter Brick
AEQ15AF48-6 DC-DC / Industry Standard Isolated Quarter Brick

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

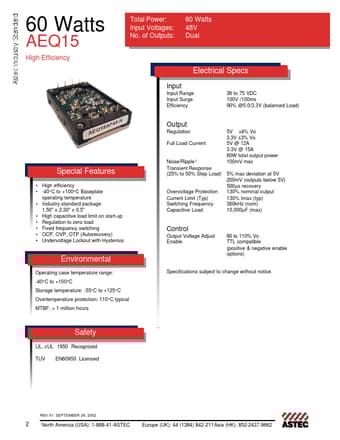

60 Watts AEQ15 High Efficiency Total Power: Input Voltages: No. of Outputs: 60 Watts 48V Dual Electrical Specs Input Input Range Input Surge Efficiency 36 to 75 VDC 100V /100ms 90% @5.0/3.3V (balanced Load) Output Regulation Full Load Current 5V ±4% Vo 3.3V ±3% Vo 5V @ 12A 3.3V @ 15A 60W total output power 100mV max 5% max deviation at 5V 200mV (outputs below 5V) 500 µs recovery 130% nominal output 130% Imax (typ) 360kHz (nom) 10,000µF (max) Special Features • High efficiency • -40°C to +100°C Baseplate operating temperature • Industry standard package 1.50" x 2.30" x 0.
