AEH30A48N, AEH-30A - DC-DC / Industry Standard Isolated Half Brick

Name: AEH30A48N
SKU: AEH30A48N-654199

Emerson

The AEH30A48N by Emerson is a DC-DC / Industry Standard Isolated Half Brick. Below is the official datasheet preview.

Datasheet Details

Part number	AEH30A48N, AEH-30A
Manufacturer	Emerson
File Size	458.90 KB
Description	DC-DC / Industry Standard Isolated Half Brick
Datasheet	AEH-30A-48.pdf
Note	This datasheet PDF includes multiple part numbers: AEH30A48N, AEH-30A. Please refer to the document for exact specifications by model.

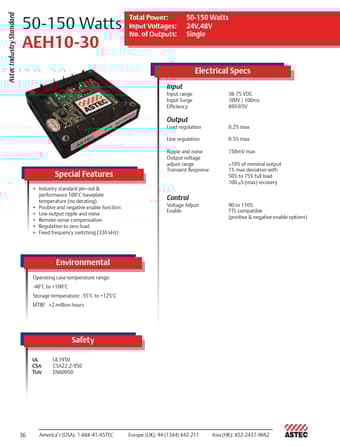

Additional preview pages of the AEH30A48N datasheet.

Industry standard pin-out & performance 100°C baseplate temperature (no derating).
Positive and negative enable function.
Low output ripple and noise.
Remote sense compensation.
Regulation to zero load.
Fixed frequency switching (330 kHz) Control Voltage Adjust Enable 90 to 110% TTL compatible (positive & negative enable options) Environmental Operating case temperature range: -40°C to +100°C Storage temperature: -55°C to +125°C MTBF: >2 m.
