MC-4R128FKK6K - 128MB 32-bit Direct Rambus DRAM RIMM Module

Description

The 32-bit Direct Rambus RIMM module is a generalpurpose high-performance lines of memory modules suitable for use in a broad range of applications including computer memory, personal computers, workstations, and other applications where high bandwidth and latency are required.

Features

  • 128MB Direct RDRAM storage and 128 banks total on module.
  • 2 independent Direct RDRAM channels, 1 pass through and 1 terminated on 32-bit RIMM module.
  • High speed 800MHz Direct RDRAM devices.
  • 232 edge connector pads with 1mm pad spacing  Module PCB size: 133.35mm × 39.925mm × 1.27mm  Gold plated edge connector pads contacts.
  • Serial Presence Detect (SPD) support.
  • Operates from a 2.5V (±5%) supply.
  • Low power and power down self refres.

📥 Download Datasheet

Datasheet Details

Part number MC-4R128FKK6K
Manufacturer Elpida Memory
File Size 88.57 KB
Description 128MB 32-bit Direct Rambus DRAM RIMM Module
Datasheet download datasheet MC-4R128FKK6K Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MC-4R128CEE6B Direct Rambus DRAM RIMM Module NEC
MC-4R128CEE6C Direct Rambus DRAM RIMM Module NEC
MC-4R128CPE6C Direct Rambus DRAM RIMM Module NEC
MC-4R192CPE6C Direct Rambus DRAM RIMM Module NEC
MC-4R256CEE6B Direct Rambus DRAM RIMM Module NEC

Other Datasheets by Elpida Memory

Part Number Description
MC-4R128FKK8K 128MB 32-bit Direct Rambus DRAM RIMM Module
MC-4R128FKE6D Direct Rambus DRAM RIMM Module
MC-4R128FKE8D Direct Rambus DRAM RIMM Module
MC-4R128FKE8S Direct Rambus DRAM SO-RIMM Module
MC-4R256FKE6D Direct Rambus DRAM RIMM Module

Full PDF Text Transcription

Click to expand full text

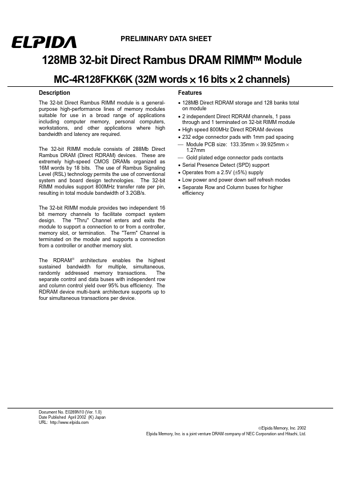

PRELIMINARY DATA SHEET 128MB 32-bit Direct Rambus DRAM RIMM Module MC-4R128FKK6K (32M words × 16 bits × 2 channels) Description The 32-bit Direct Rambus RIMM module is a generalpurpose high-performance lines of memory modules suitable for use in a broad range of applications including computer memory, personal computers, workstations, and other applications where high bandwidth and latency are required. The 32-bit RIMM module consists of 288Mb Direct Rambus DRAM (Direct RDRAM) devices. These are extremely high-speed CMOS DRAMs organized as 16M words by 18 bits. The use of Rambus Signaling Level (RSL) technology permits the use of conventional system and board design technologies. The 32-bit RIMM modules support 800MHz transfer rate per pin, resulting in total module bandwidth of 3.2GB/s.
