HM5257405B-75 - 512M LVTTL interface SDRAM 133 MHz/100 MHz 8-Mword 16-bit 4-bank/16-Mword 8-bit 4-bank /32-Mword 4-bit 4-bank PC/133/ PC/100 SDRAM

Elpida Memory

Datasheet Details

Part number	HM5257405B-75
Manufacturer	Elpida Memory
File Size	463.46 KB
Description	512M LVTTL interface SDRAM 133 MHz/100 MHz 8-Mword 16-bit 4-bank/16-Mword 8-bit 4-bank /32-Mword 4-bit 4-bank PC/133/ PC/100 SDRAM
Datasheet	HM5257405B-75_ElpidaMemory.pdf

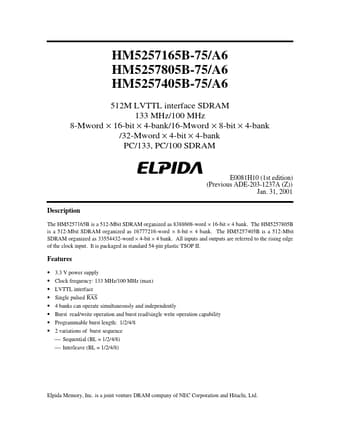

The HM5257165B is a 512-Mbit SDRAM organized as 8388608-word × 16-bit × 4 bank.

3.3 V power supply Clock frequency: 133 MHz/100 MHz (max) LVTTL interface Single pulsed RAS 4 banks can operate simultaneously and independently Burst read/write operation and burst read/single write operation capability Programmable burst length: 1/2/4/8 2 variations of burst sequence  Sequential (BL = 1/2/4/8)  Interleave (BL = 1/2/4/8) Elpida Memory, Inc. is a joint venture DRAM company of NEC Corporation and H.
