M32L1632512A - 256K x 32-Bit x 2-Bank SGRAM

Product Overview

Elite Semiconductor

Datasheet Details

Part number	M32L1632512A
Manufacturer	Elite Semiconductor
File Size	1.09 MB
Description	256K x 32-Bit x 2-Bank SGRAM
Datasheet	M32L1632512A Datasheet

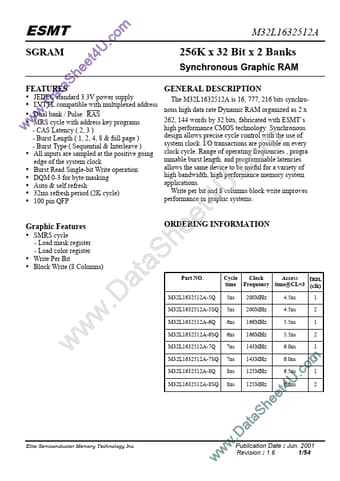

Additional preview pages of the M32L1632512A datasheet.

Product details

Description

The M32L1632512A is 16, 777, 216 bits synchronous high data rate Dynamic RAM organized as 2 x 262, 144 words by 32 bits, fabricated with ESMT’s high performance CMOS technology.

Features

at 3.3V power supply y JEDEC standard y LVTTL . D compatible with multiplexed address w bank / Pulse RAS y Dual yw MRS cycle with address key programs w - CAS Latency ( 2, 3 ) y y y y y y - Burst Length ( 1, 2, 4, 8 & full page ) - Burst Type ( Sequential & Interleave ) All inputs are sampled at the positive going edge of the system clock Burst Read Single-bit Write operation DQM 0-3 for byte masking Auto & self refresh 32ms refresh period (2K cycle) 100 pin QFP ESMT M32L1632512A 256K x 32 Bit.
