EL2002C - Low Power/ 180 MHz Buffer Amplifier

Description

The EL2002 is a low cost monolithic high slew rate buffer amplifier Built using the Elantec monolithic Complementary Bipolar process this patented buffer has a b 3 dB bandwidth of 180 MHz and delivers 100 mA yet draws only 5 mA of supply current It typically operates from g 15V power supplies but wi

Features

  •           180 MHz bandwidth 2000 V ms slew rate Low bias current 3 mA typical 100 mA output current 5 mA supply current Short circuit protected Low cost Stable with capacitive loads Wide supply range g 5V to g 15V No thermal runaway General.

📥 Download Datasheet

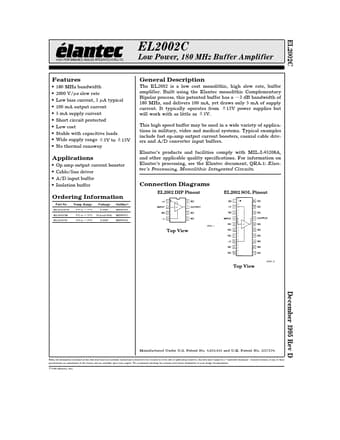

Datasheet preview – EL2002C

Datasheet Details

Part number EL2002C
Manufacturer Elantec
File Size 302.52 KB
Description Low Power/ 180 MHz Buffer Amplifier
Datasheet download datasheet EL2002C Datasheet
Additional preview pages of the EL2002C datasheet.
