EL4089C - DC Restored Video Amplifier

Product Overview

Elantec Semiconductor

Datasheet Details

Part number	EL4089C
Manufacturer	Elantec Semiconductor
File Size	211.29 KB
Description	DC Restored Video Amplifier
Datasheet	EL4089C Datasheet

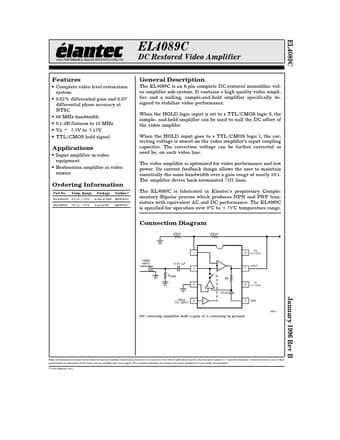

Additional preview pages of the EL4089C datasheet.

Product details

Description

The EL4089C is an 8-pin complete DC-restored monolithic video amplifier sub-system It contains a high quality video amplifier and a nulling sample-and-hold amplifier specifically designed to stabilize video performance When the HOLD logic input is set to a TTL CMOS logic 0 the sample- and-hold amplifier can be used to null the DC offset of the video amplifer When the HOLD input goes to a TTL CMOS logic l the correcting voltage is stored on the video amplifier’s input coupling capacitor The corre

Features

Complete video level restoration system 0 02% differential gain and 0 05 differential phase accuracy at NTSC 60 MHz bandwidth 0 1 dB flatness to 10 MHz VS e g 5V to g 15V TTL CMOS hold signal General.
