MPI2520 - Miniature Power Inductors

Eaton

The MPI2520 by Eaton is a Miniature Power Inductors. Below is the official datasheet preview.

📥 Download Datasheet

MPI2520 Miniature Power Inductors by Eaton - Datasheet Preview — Official preview page of the **MPI2520** Miniature Power Inductors datasheet (Eaton).

Datasheet Details

Part number	MPI2520
Manufacturer	Eaton
File Size	832.50 KB
Description	Miniature Power Inductors
Datasheet	MPI2520-Eaton.pdf

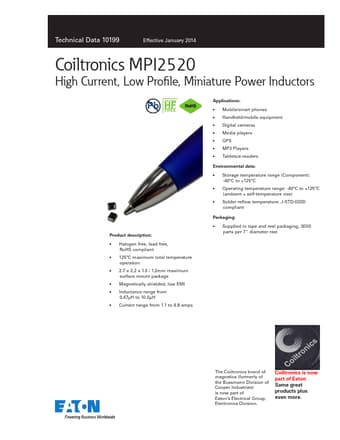

Additional preview pages of the MPI2520 datasheet.

MPI2520 Product details

Description

Halogen free, lead free, RoHS compliant 125°C maximum total temperature operation 2.7 x 2.2 x 1.0 / 1.2mm maximum surface mount package Magnetically shielded, low EMI Inductance range from 0.47µH to 10.0µH Current range from 1.1 to 4.8 amps Applications: Mobile/smart phones Handheld/mobile equipment Digital cameras Media players GPS MP3 Players Ta
