ECW20N20-Z - N-CHANNEL LATERAL MOSFET

ECW20N20-Z Description

ECW20N20-Z N CHANNEL LATERAL MOSFET N Channel Lateral Mosfet Designed speci cally for linear audio ampli er applications High-speed for high bandwidt.

ECW20N20-Z Applications

* High-speed for high bandwidth ampli ers High voltage rating - 200V TO-264 plastic package Enhanced oscillation suppression in multi-device applications Complementary P-channel available
* ECW20P20-Z ABSOLUTE MAXIMUM RATINGS (TC= 25°C unless otherwise stated) VDSS Drain
* Source Vo

📥 Download Datasheet

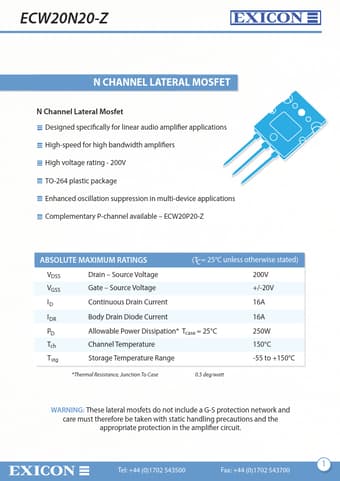

Preview of ECW20N20-Z PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ECW20N20-Z
Manufacturer
EXICON
File Size
175.46 KB
Datasheet
ECW20N20-Z-EXICON.pdf
Description
N-CHANNEL LATERAL MOSFET
