TMC2011A - Variable-Length Shift Register

Name: TMC2011A
SKU: TMC2011A-1491941

EXAR

The TMC2011A by EXAR is a Variable-Length Shift Register. Below is the official datasheet preview.

Datasheet Details

Part number	TMC2011A
Manufacturer	EXAR
File Size	361.91 KB
Description	Variable-Length Shift Register
Datasheet	TMC2011A-EXAR.pdf

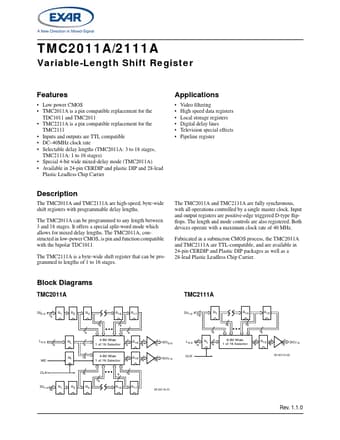

Additional preview pages of the TMC2011A datasheet.

The TMC2011A and TMC2111A are high-speed, byte-wide shift registers with programmable delay lengths.

Low power CMOS.
TMC2011A is a pin compatible replacement for the TDC1011 and TMC2011.
TMC2211A is a pin compatible replacement for the TMC2111.
Inputs and outputs are TTL compatible.
DC.
40MHz clock rate.
Selectable delay lengths (TMC2011A: 3 to 18 stages, TMC2111A: 1 to 16 stages).
Special 4-bit wide mixed-delay mode (TMC2011A).
Available in 24-pin CERDIP and plastic DIP and 28-lead Plastic Leadless Chip Carrier Ap.
