BAT54WS - SCHOTTKY BARRIER RECTIFIERS

BAT54WS Datasheet Preview — Preview of BAT54WS PDF

Datasheet Details

Part number	BAT54WS
Manufacturer	EVVOSEMI
File Size	432.48 KB
Description	SCHOTTKY BARRIER RECTIFIERS
Datasheet	BAT54WS-EVVOSEMI.pdf

BAT54WS Product details

Description

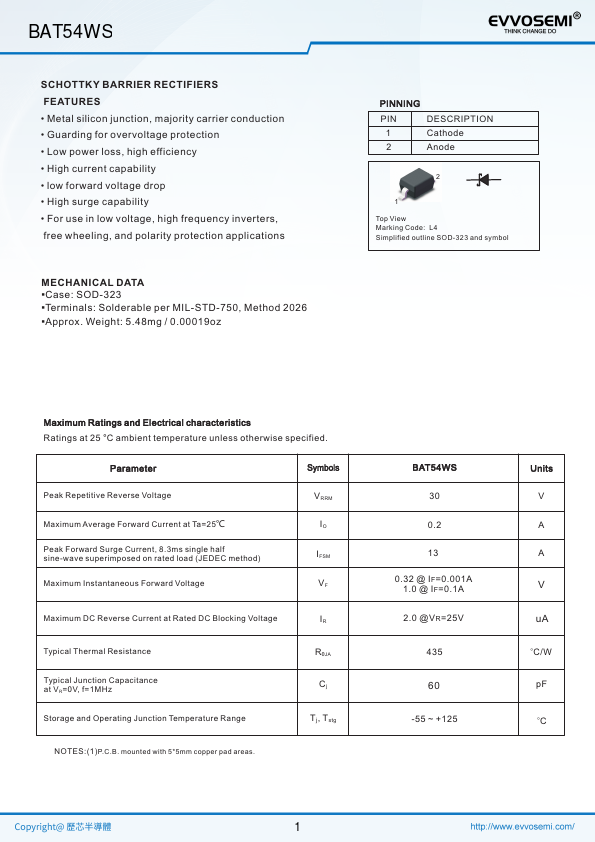

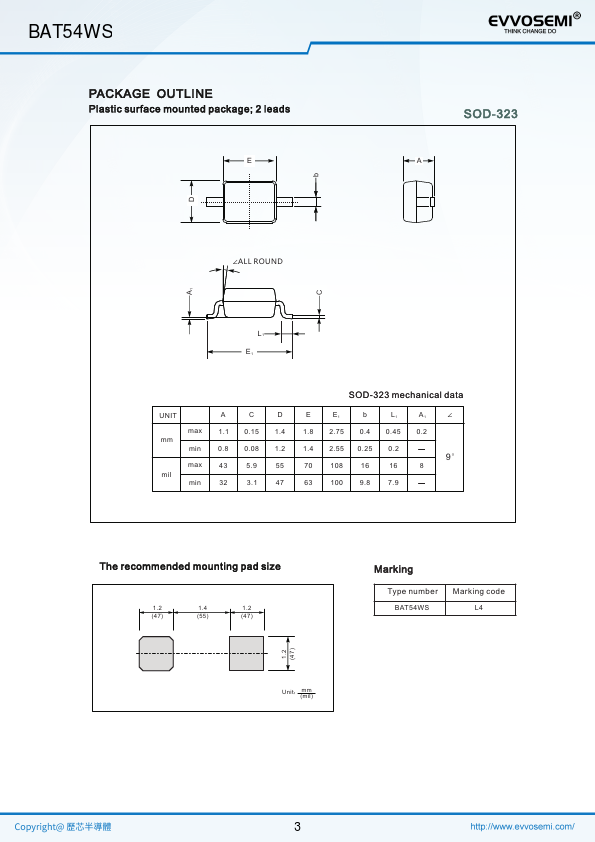

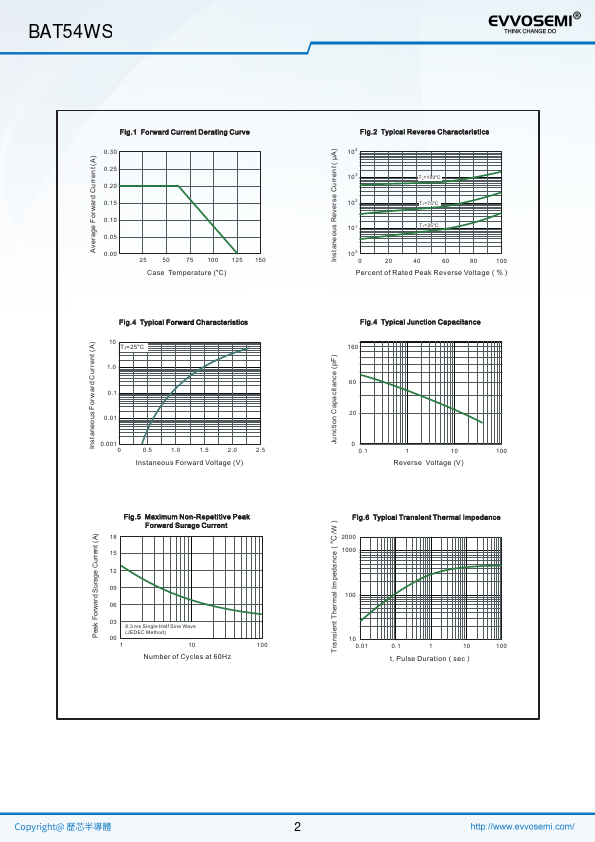

1 Cathode 2 Anode 2 1 Top View Marking Code: L4 Simplified outline SOD-323 and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Parameter Symbols Peak Repetitive Reverse Voltage Maximum Average Forward Current at Ta=25℃ Peak Forward Surge Current, 8.3ms single half sine-wave superimposed on rated load (JEDEC method) Maximum Instantaneous Forward Voltage VRRM IO IFSM VF Maximum DC Reverse Current at Rated DC Blocking

Features

Metal silicon junction, majority carrier conduction.
Guarding for overvoltage protection.
Low power loss, high efficiency.
High current capability.
low forward voltage drop.
High surge capability.
For use in low voltage, high frequency inverters, free wheeling, and polarity protection.
