KBPC102 - 10A Single-Phase Silicon Bridge Rectifier

Product Overview

Part number	KBPC102
Manufacturer	EVVO
File Size	439.49 KB
Description	10A Single-Phase Silicon Bridge Rectifier
Datasheet	KBPC102 Datasheet
Note	This datasheet PDF includes multiple part numbers: KBPC102, KBPC1005. Please refer to the document for exact specifications by model.

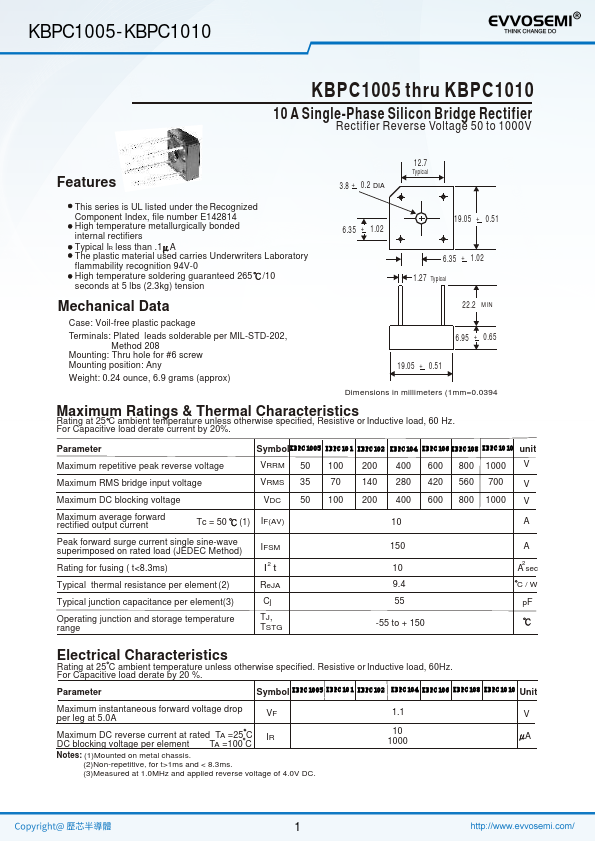

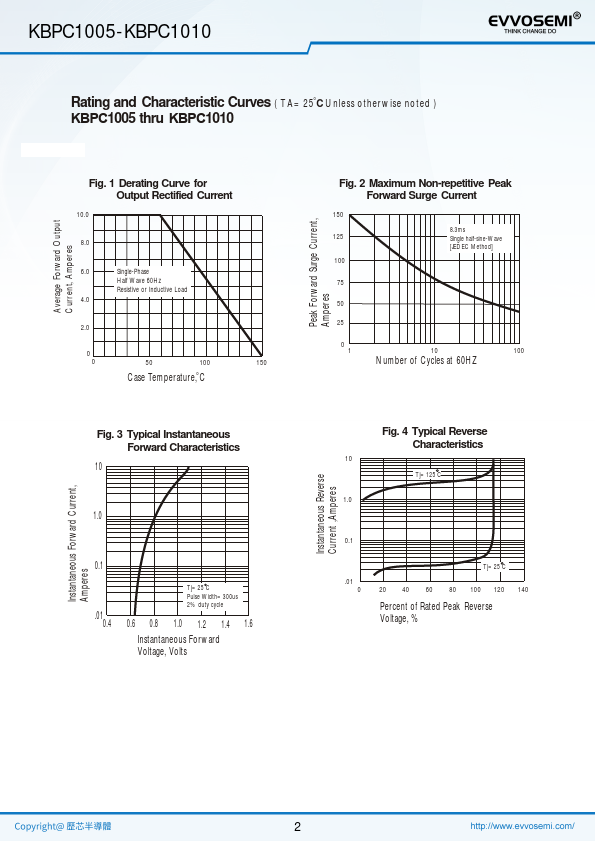

Additional preview pages of the KBPC102 datasheet.

3.8 + 0.2 DIA 12.7 Typical This series is UL listed under the Recognized Component Index, file number E142814 High temperature metallurgically bonded internal rectifiers Typical IR less than .1 A The plastic material used carries Underwriters Laboratory flammability recognition 94V-0 High temperature soldering guaranteed 265 /10 seconds at 5 lbs (2.3kg) tension 6.35 + 1.02 19.05 + 0.51 6.35 + 1.02 1.27 Typical Mechanical Data Case: Voil-free plastic package Terminals: Plated leads solderab.
