IRM-H136-TR2 - Infrared Remote-control Receiver

EVERCOLORS

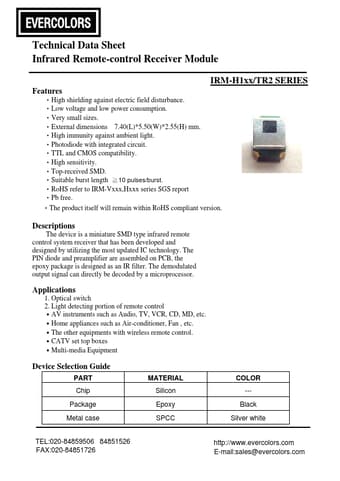

IRM-H136-TR2 Datasheet Preview — Preview of IRM-H136-TR2 PDF

Datasheet Details

Part number	IRM-H136-TR2
Manufacturer	EVERCOLORS
File Size	432.41 KB
Description	Infrared Remote-control Receiver
Datasheet	IRM-H136-TR2-EVERCOLORS.pdf

IRM-H136-TR2 Product details

Description

The device is a miniature SMD type infrared remote control system receiver that has been developed and designed by utilizing the most updated IC technology.

Features

‧High shielding against electric field disturbance. ‧Low voltage and low power consumption. ‧Very small sizes. ‧External dimensions 7.40(L).
5.50(W).
2.55(H) mm. ‧High immunity against ambient light. ‧Photodiode with integrated circuit. ‧TTL and CMOS compatibility. ‧High sensitivity. ‧Top-received SMD. ‧Suitable burst length ≧10 pulses/burst. ‧RoHS refer to IRM-Vxxx,Hxxx series SGS report ‧Pb free. ‧The product itself will remain within RoHS compliant version.
