235DH2LP11000 - DC Axial Fans

Download the 235DH2LP11000 datasheet PDF. This datasheet also covers the 235DL1LP11000 variant, as both devices belong to the same dc axial fans family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (235DL1LP11000-ETRI.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 235DH2LP11000
Manufacturer ETRI
File Size 281.49 KB
Description DC Axial Fans
Datasheet download datasheet 235DH2LP11000 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
235.000 Axial Lead And Cartridge Fuses LittelFuse

Other Datasheets by ETRI

Part Number Description
235DH1LP11000 DC Axial Fans
235DH4LP11000 DC Axial Fans
235DL1LP11000 DC Axial Fans
235DL2LP11000 DC Axial Fans
235DL4LP11000 DC Axial Fans

Full PDF Text Transcription

Click to expand full text

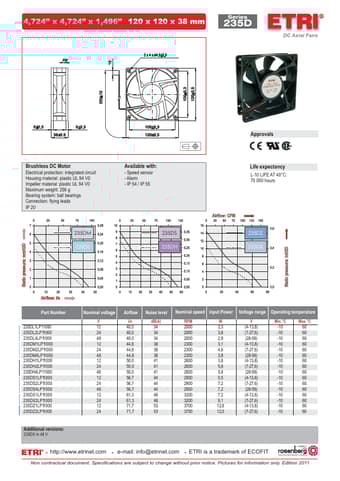

4,724’’ x 4,724” x 1,496’’ 120 x 120 x 38 mm 235D DC Axial Fans Series Approvals R R Brushless DC Motor Electrical protection: integrated circuit Housing material: plastic UL 94 V0 Impeller material: plastic UL 94 V0 Maximum weight: 256 g Bearing system: ball bearings Connection: flying leads IP 20 Available with: - Speed sensor - Alarm - IP 54 / IP 55 Life expectancy L-10 LIFE AT 40°C: 70 000 hours Airflow: CFM 235DM Static pressure: mmH2O 235DS 235DH 235DZ Static pressure: InH2O Min.°C Max.
