DTA143EKA - Digital transistors

Product Overview

ETL

Part number	DTA143EKA
Manufacturer	ETL
File Size	136.63 KB
Description	Digital transistors
Datasheet	DTA143EKA Datasheet

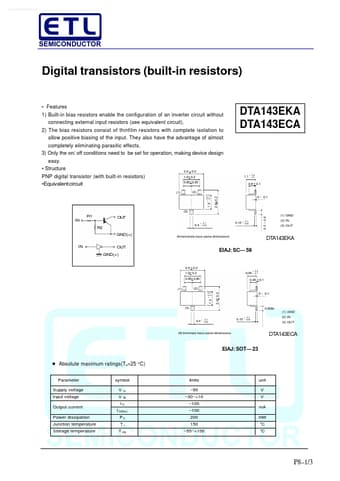

Additional preview pages of the DTA143EKA datasheet.

s 1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thinfilm resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on/ off conditions need to be set for operation, making device design easy.
Structure PNP digital transistor (with built-in resistors).
