ET7806, ET78xx - 3-Teminal Regulators

The ET7806 by ETIC is a 3-Teminal Regulators. Below is the official datasheet preview.

ET7806 3-Teminal Regulators by ETIC - Datasheet Preview — Official preview page of the **ET7806** 3-Teminal Regulators datasheet (ETIC).

Datasheet Details

Part number	ET7806, ET78xx
Manufacturer	ETIC
File Size	101.52 KB
Description	3-Teminal Regulators
Datasheet	ET78xx_ETIC.pdf
Note	This datasheet PDF includes multiple part numbers: ET7806, ET78xx. Please refer to the document for exact specifications by model.

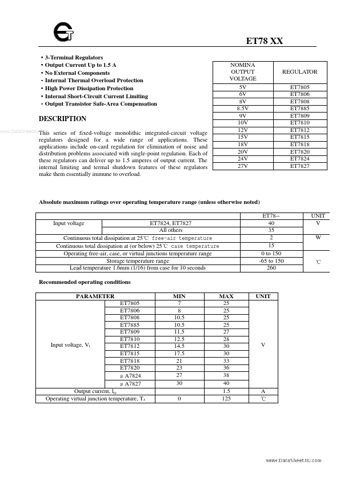

Additional preview pages of the ET7806 datasheet.

ET7806 Product details

Description

www.DataSheet4U.com This series of fixed-voltage monolithic integrated-circuit voltage regulators designed for a wide range of applications.These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation.Each of these regulators can deliver up to 1.5 amperes of output current.The internal limiting and termal shutdown

Features

of these regulators make them essentially immune to overload. Absolute maximum ratings over operating temperature range (unless otherwise noted) ET78-40 35 2 15 0 to 150 -65 to 150 260 UNIT V W Input voltage ET7824, ET7827 All others Continuous total dissipation at 25 free-air temperature Continuous total dissipation at (or below) 25 case temperature Operating free-air, case, or virtual junctions temperature range Storage temperature range Lead temperature 1.6mm (1/16) from case for 10 second.
